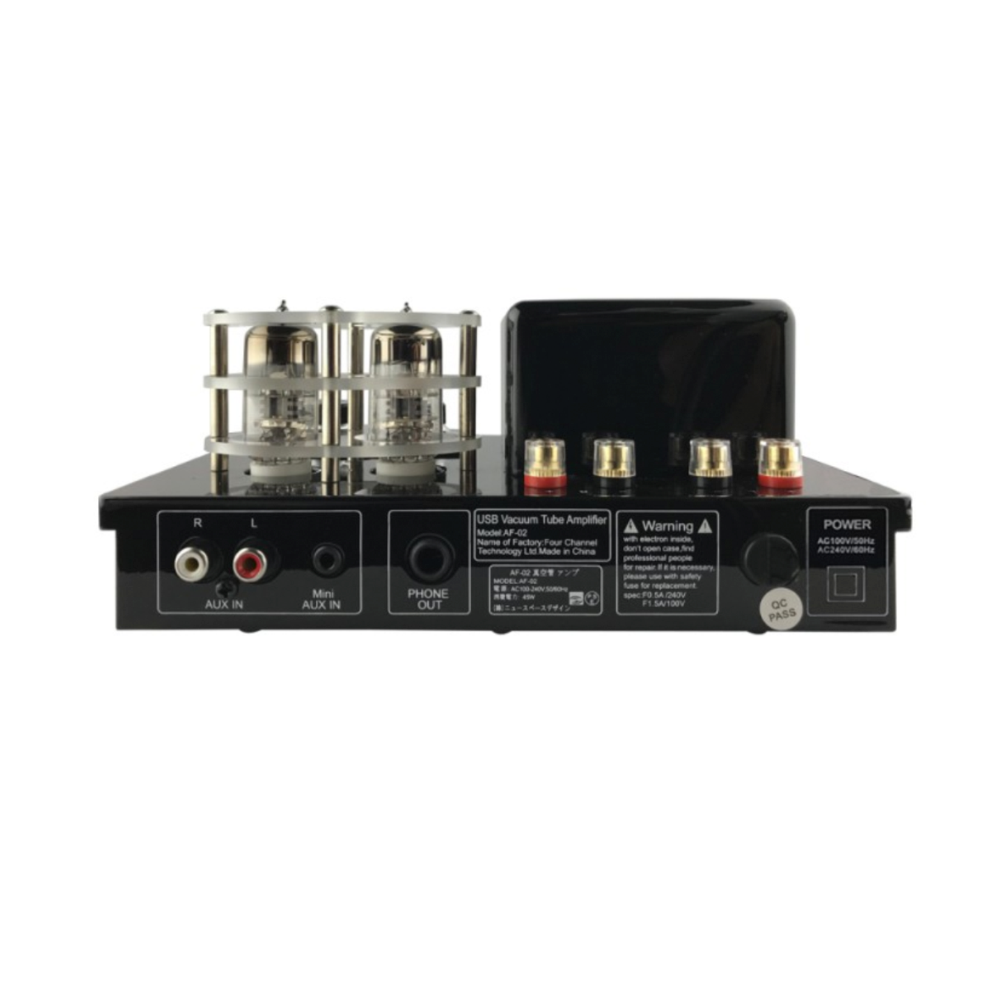

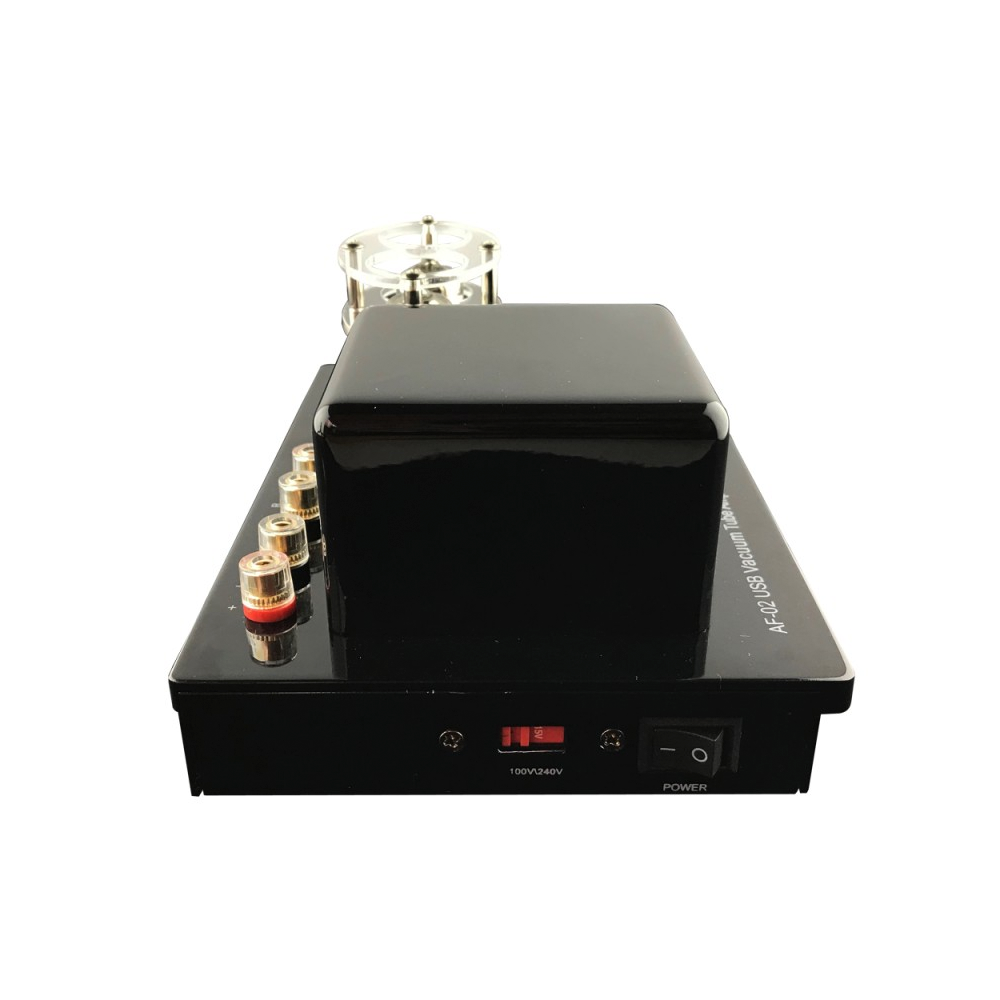

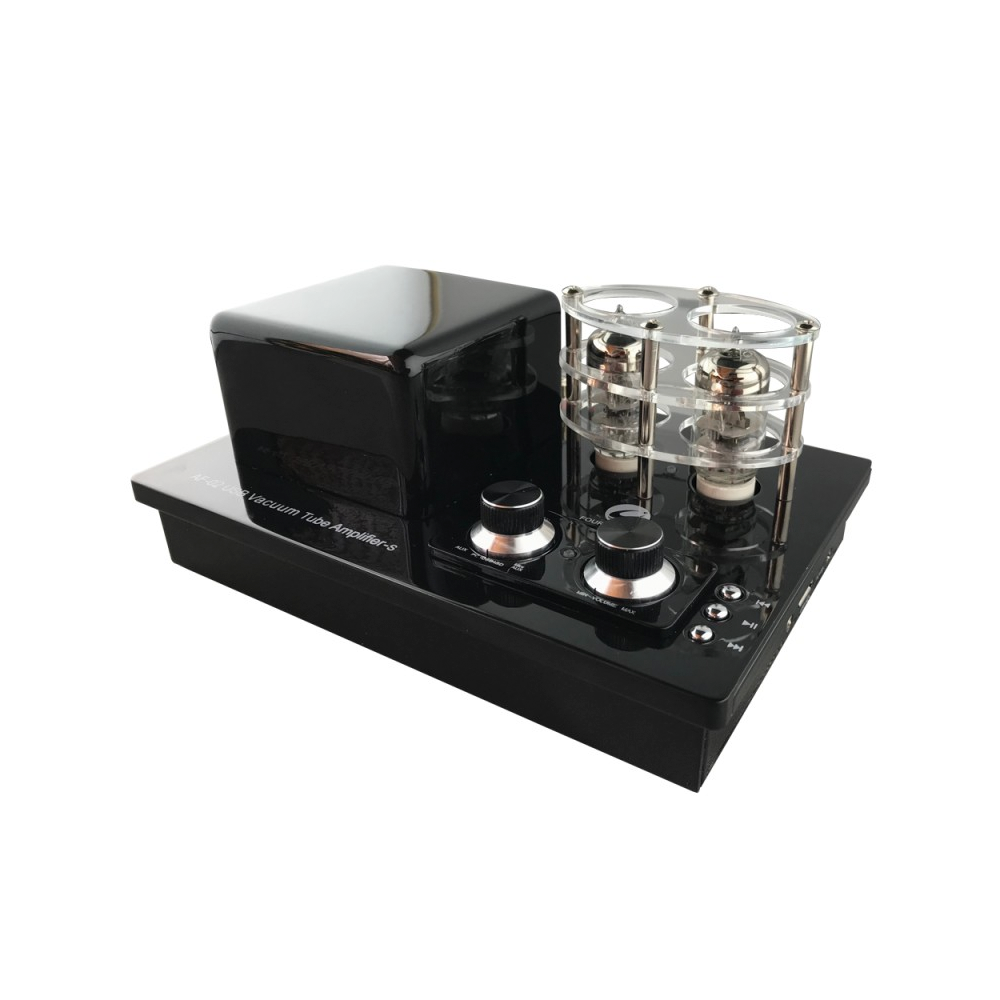

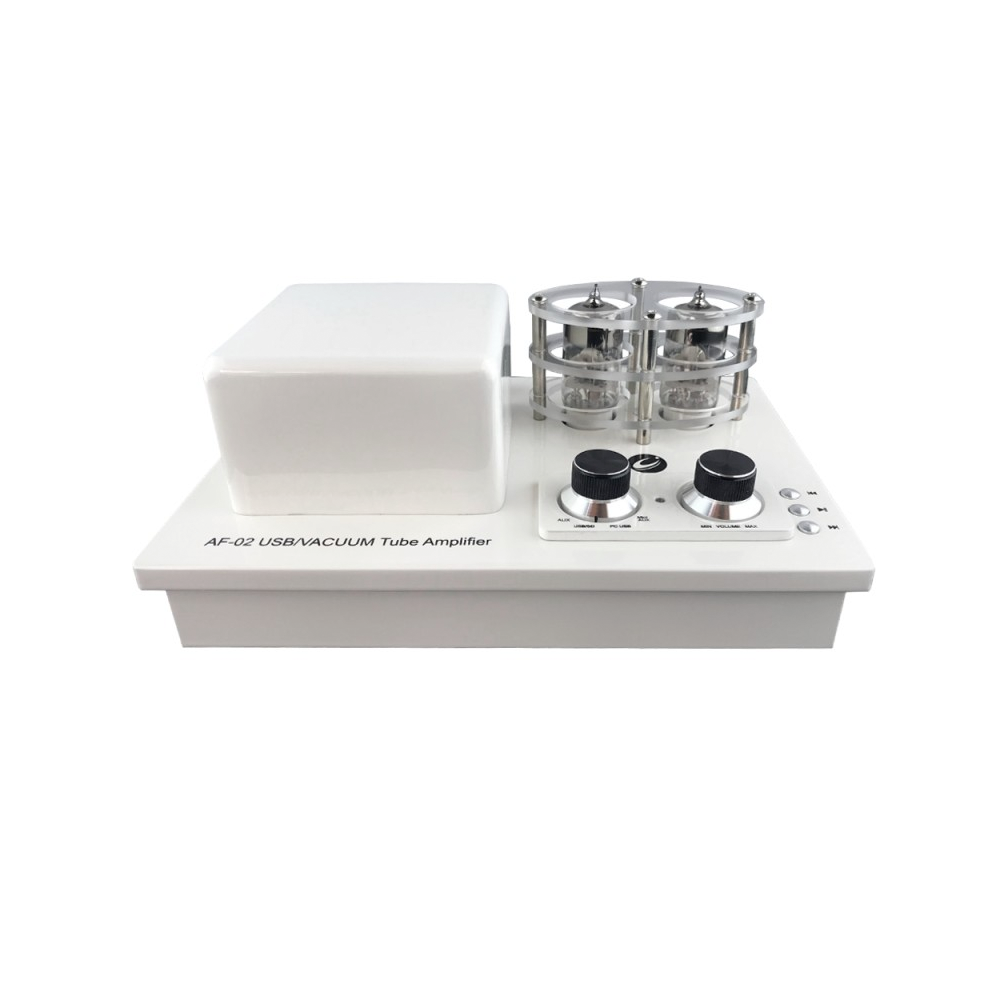

TFCAMP-02 Mini USB Amplifier
Model No.:
TFCAMP-02
JAN:
---
| Model number | JAN |
|---|---|
| TFCAMP-02BK | 4533239032536 |
| TFCAMP - 02 WH | 4533239032543 |
| Maximum output | 15 W × 2 |
| Impedance | 8 Ω rated output |
| Response frequency | 20 Hz - 20 KHz (1.5 db) |
| Total harmonic distortion ratio | Up to 1% (1 KHz) |
| Sample rate | 48 KHz / 16 bit |
| Input sensitivity | 450 mv |
| Headphone output | 32 Ω - 600 Ω |
| S / N ratio | 85 dB |
| Supply voltage | 100 V (50 Hz / 60 Hz) / 240 v (50 Hz) |
| Power consumption | 55 W |
| Vacuum tube | 6C3 x 2 |
| Body weight | 2 kg |
| Body size | L200 mm * W 135 mm * H 95 mm |
| Supported OS | Windows 7 or later, MacOS X |
| Accessories | Speaker cable (2P banana plug), USB cable, 3.5mm stereo mini cable |
