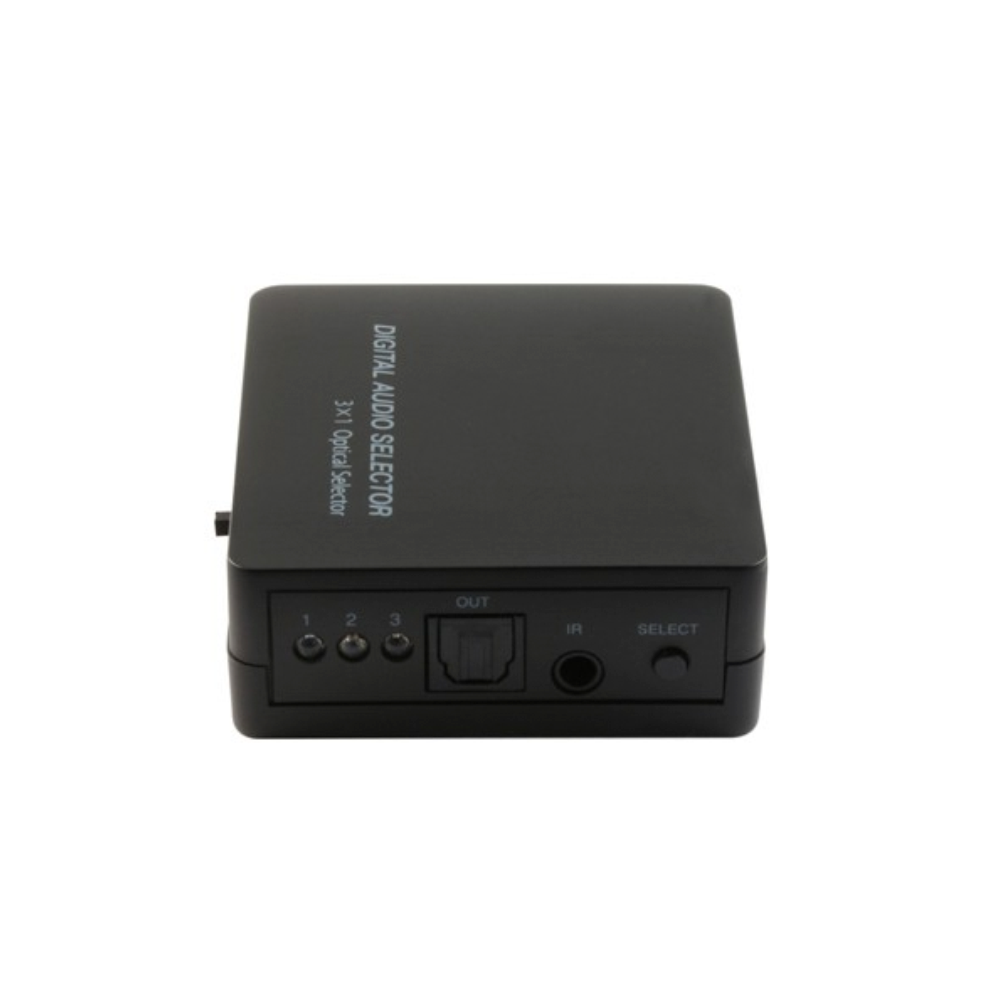

TESWDA31 Optical Digital Audio Switcher
Model No.:
JAN:

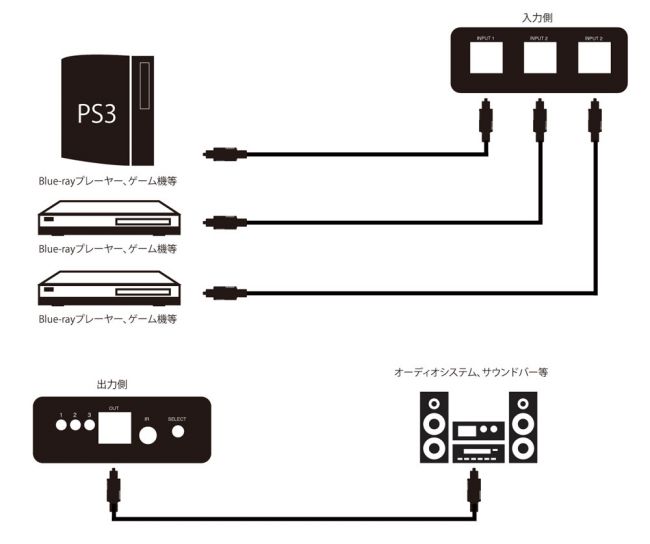

This audio switcher allows you to switch between three optical digital square connector inputs and output to one optical digital square connector.
Unlike mechanical switchers that require operation on the main unit, the TESWDA31 supports remote control, allowing easy switching even from a distance.
It is equipped with a power switch, so you can turn the power off when it is not in use.
It also remembers the selected input position even after the power is turned off, so there is no need to set it again.
Some products require separate USB power, but the TESWDA31 comes with an AC adapter, so it can be used right away.
It can also be powered from the USB port of a Blu-ray recorder or similar device. (Please prepare a miniUSB connector to USB cable separately.)
Supported audio formats are LPCM2.0, DTS, and Dolby-AC3.
| Model no. | TESWDA31 |
| JAN | 4533239026627 |
| Input terminal | Optical digital square × 3 |
| Output terminal | Optical digital square × 1 |
| Supported audio format | LPCM2.0/DTS/Dolby-AC3 |
| Audio switching | Operated by the switch button on the main unit or by remote control |
| Product size | 60 x 54 x 20mm (excluding protrusions) |
| Power supply | 5V AC adapter |
| Weight | 40g |
| Accessories | Remote receiver cable, AC adapter, remote control for switching, instruction manual with warranty |
