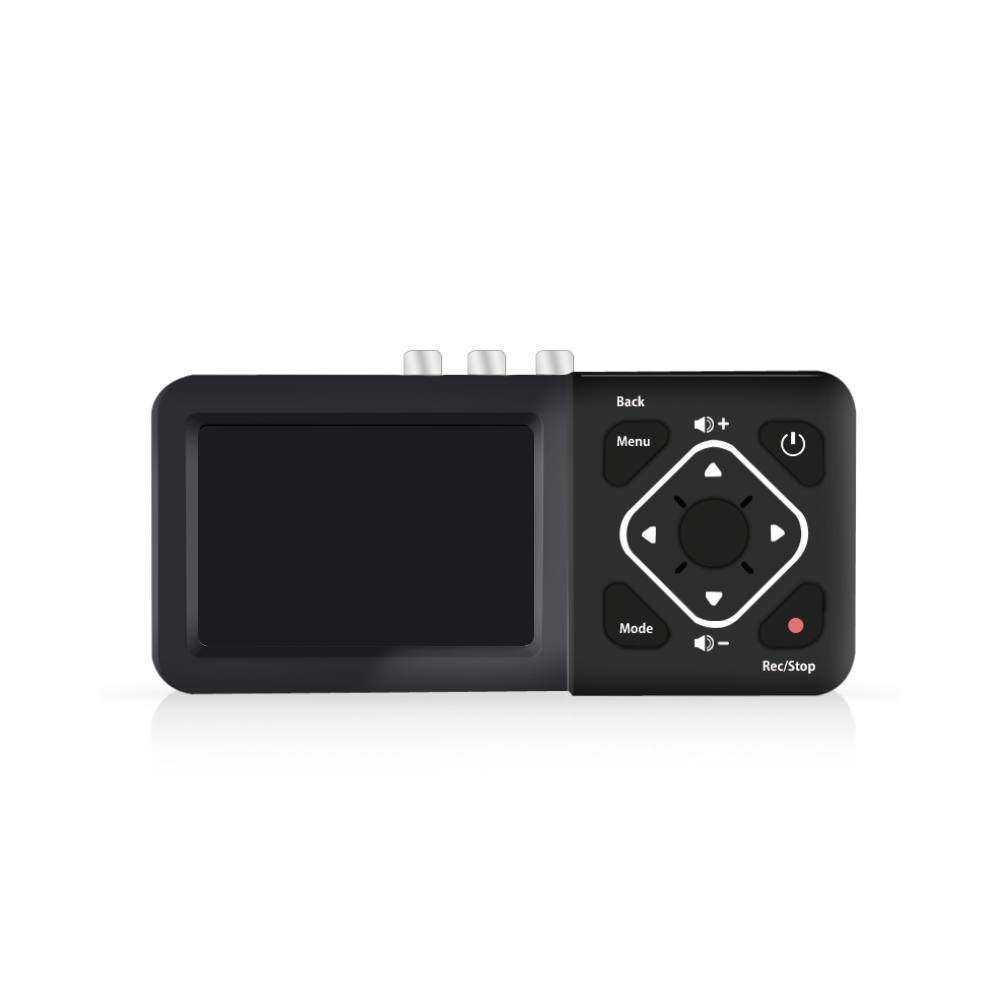

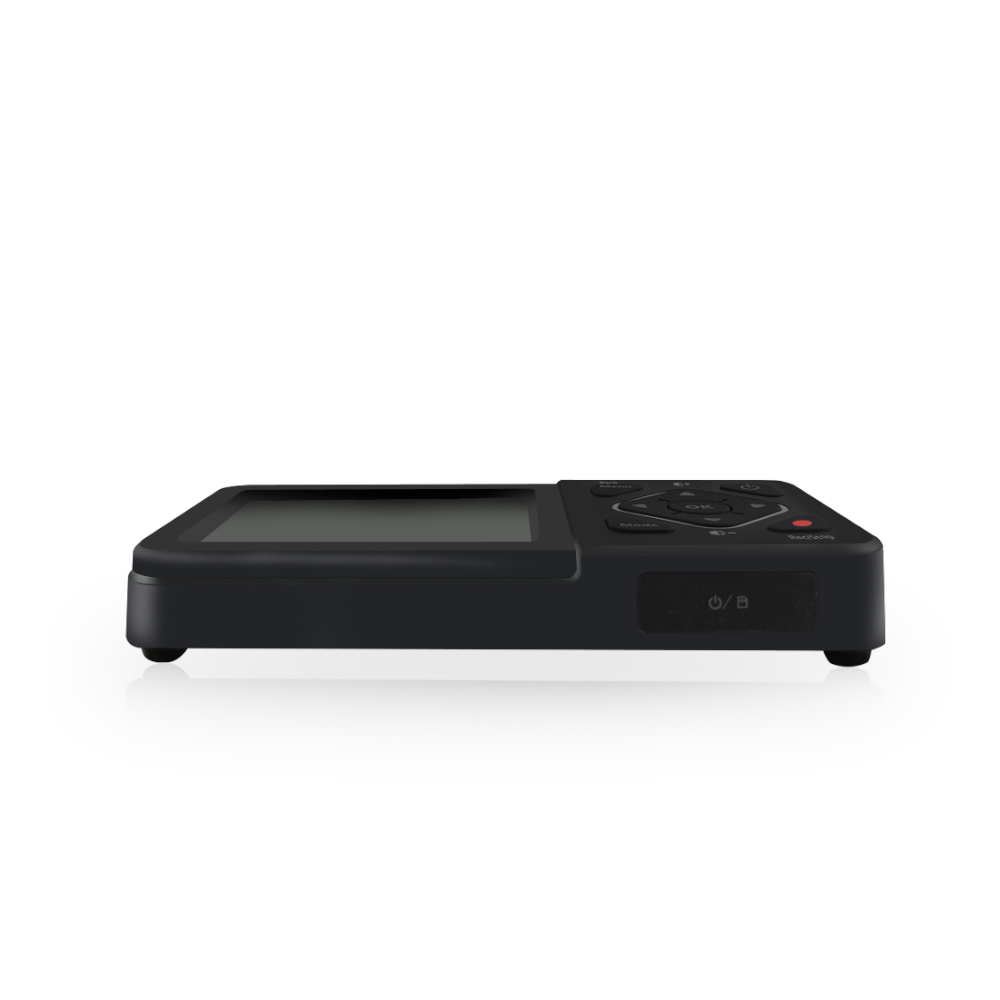

TADREC-S2 Analog to Digital Recorder

Model No.:

TADREC-S2

JAN:

4533239033243

<span>TADREC-S2 Analog to Digital Recorder</span>

Model Number	TADREC-S2
JAN Code	4533239033243

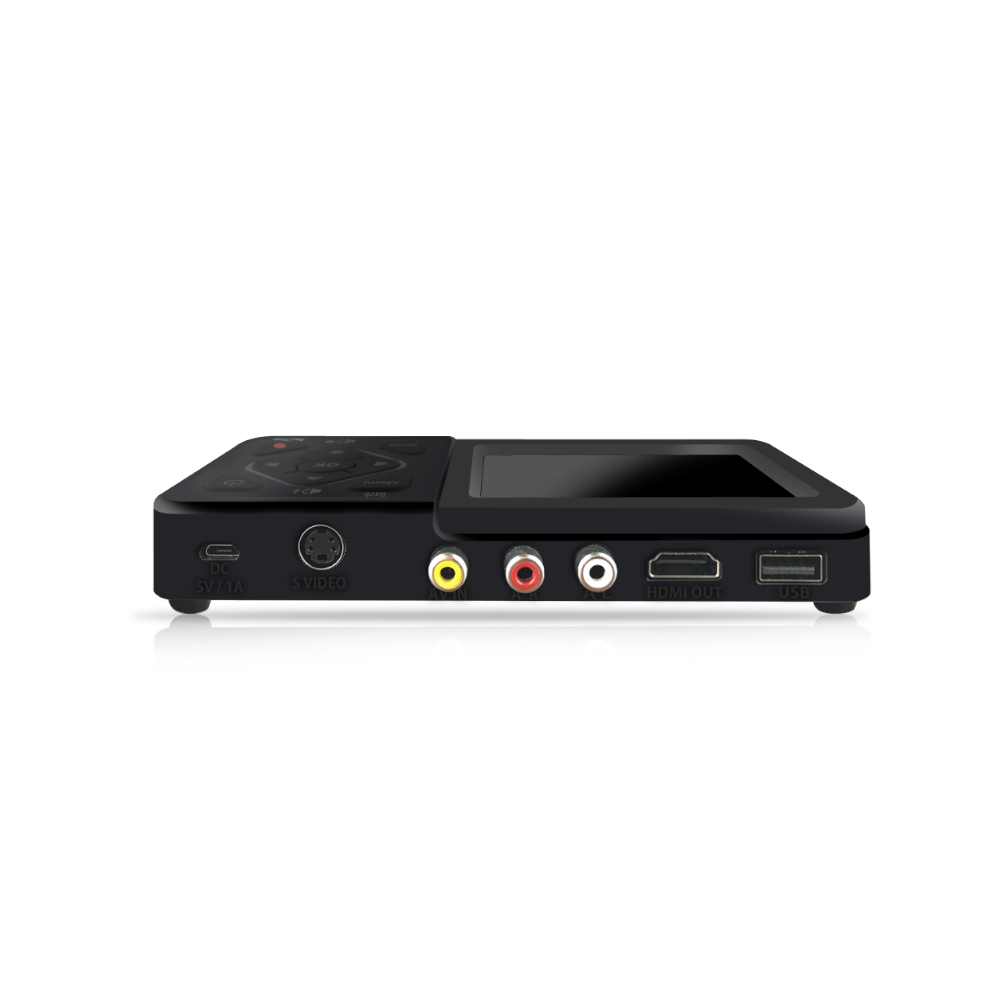

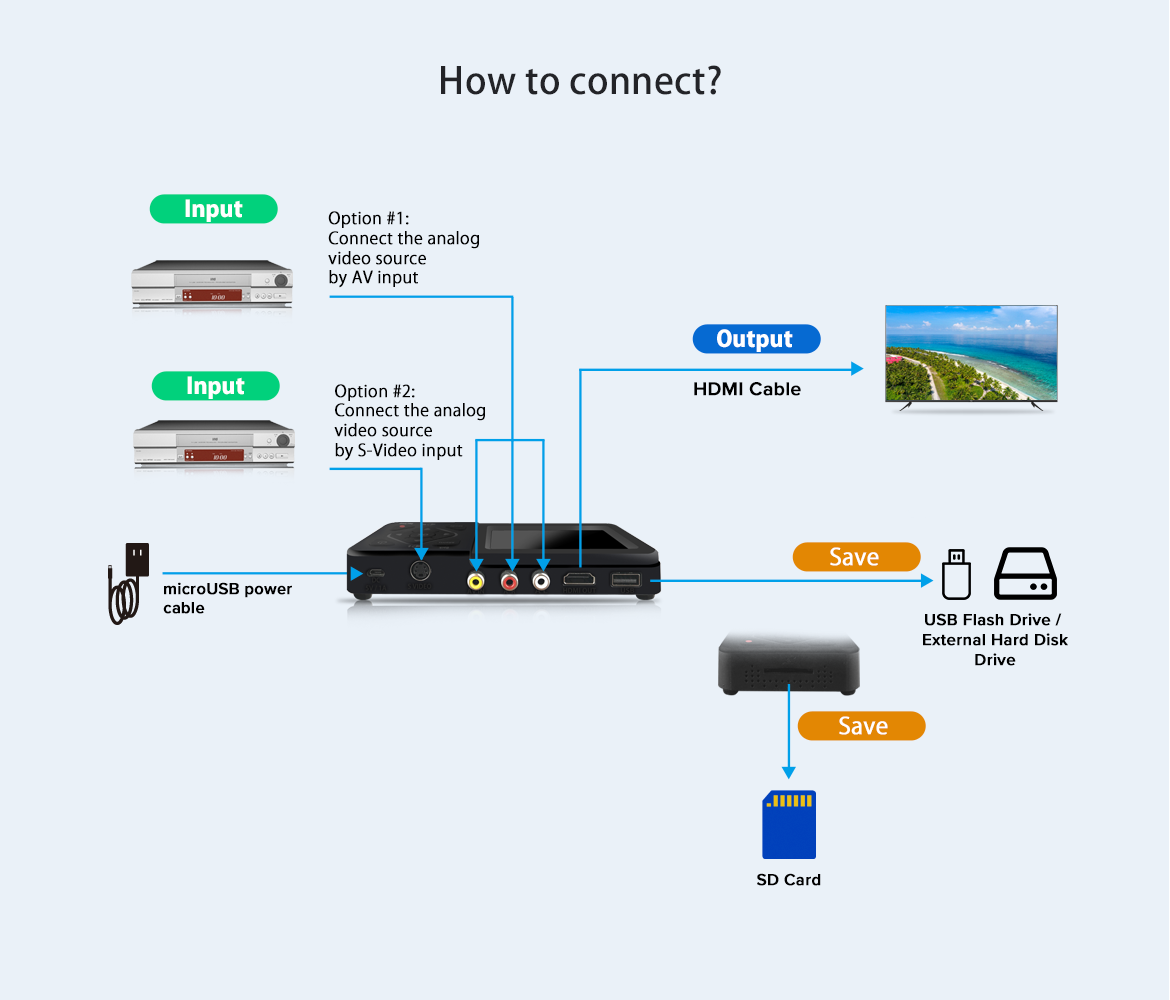

Composite / S-Video Input	NTSC 720×480i60
HDMI Output	1280×720p60
Output Signal	HDMI, Speaker
Recording Resolution	720×480 (3:2) / 640×480p (4:3)
Supported File Systems	FAT32, FAT, NTFS, exFAT
Recording Format	MP4 (H.264)
Recording Capacity Per File	Up to 4GB per 1 file
Recording Time (Approximate)	4GB / about 2 hours 15 minutes 8GB / about 4 hours 30 minutes
Maximum Supported External Storage	External HDD up to 2TB ※When using a 2TB HDD, only products with external power input are supported. Since this product operates at 5V1A, HDDs without external power input will not operate normally.
Package Contents	TADREC-S2 main unit, AV cable, USB power cable, AC USB power adapter, Instruction manual and warranty card

Download Manual

Download Firmware / Driver

* This product does not guarantee operation with all connected devices.

* When connected to a TV or monitor via HDMI, the image on the LCD screen of this product is not displayed, only the monitor display of the HDMI output destination.

* Unless permitted by copyright law, such as copying for private use, images, sounds, etc. created using this product may not be copied, modified, or publicly transmitted without the permission of the author.

* It is a violation of copyright law to record digitally by receiving data that infringes copyright while knowing the fact.

* Please note that we are not responsible for any impact on others caused by operating this product, regardless of the above.
