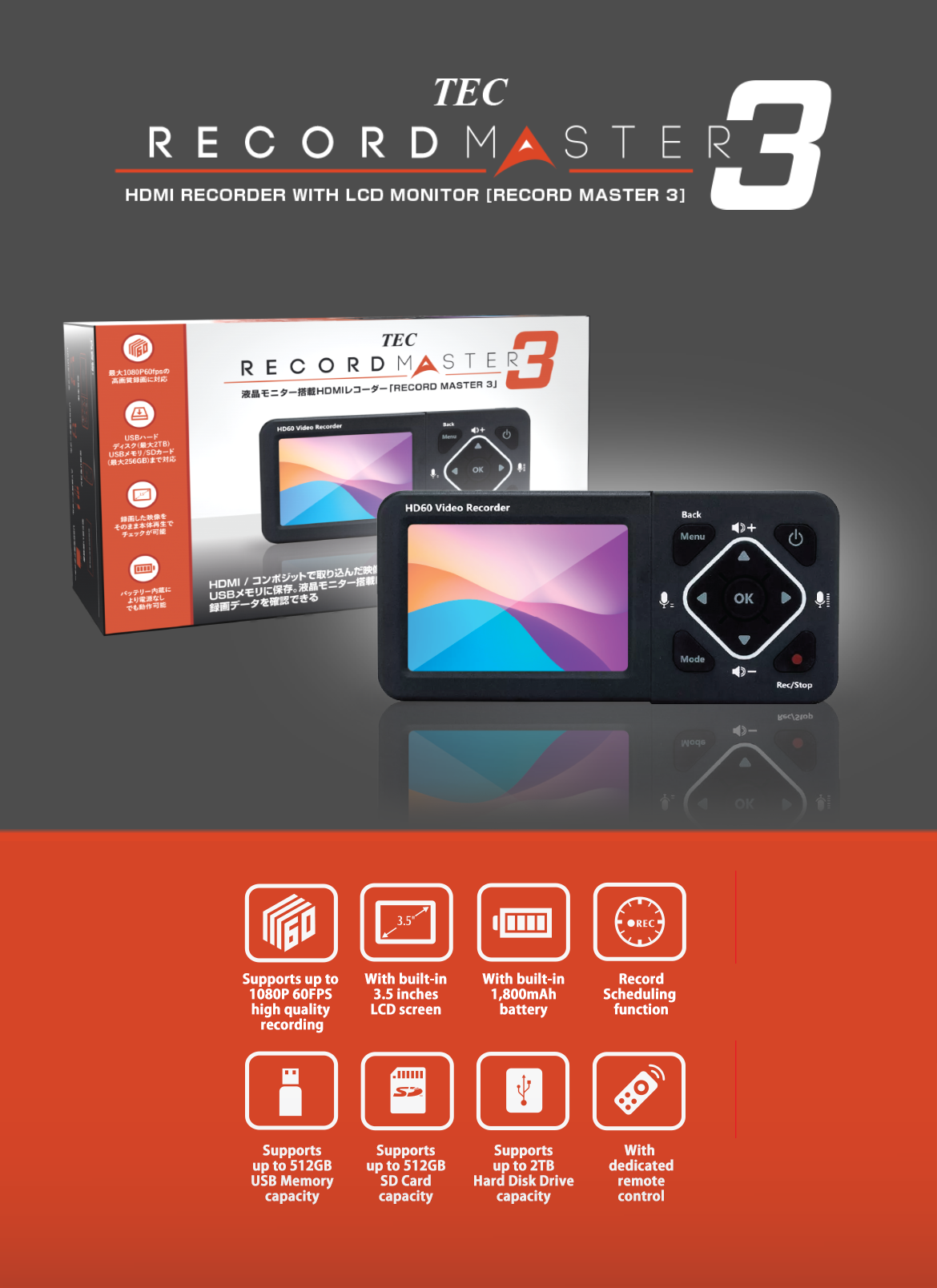

TMREC-FHD3 RECORD MASTER
Model No.:
TMREC-FHD3
JAN:
4533239033526
| Model Number | TMREC-FHD3 |
| JAN Code | 4533239033526 |

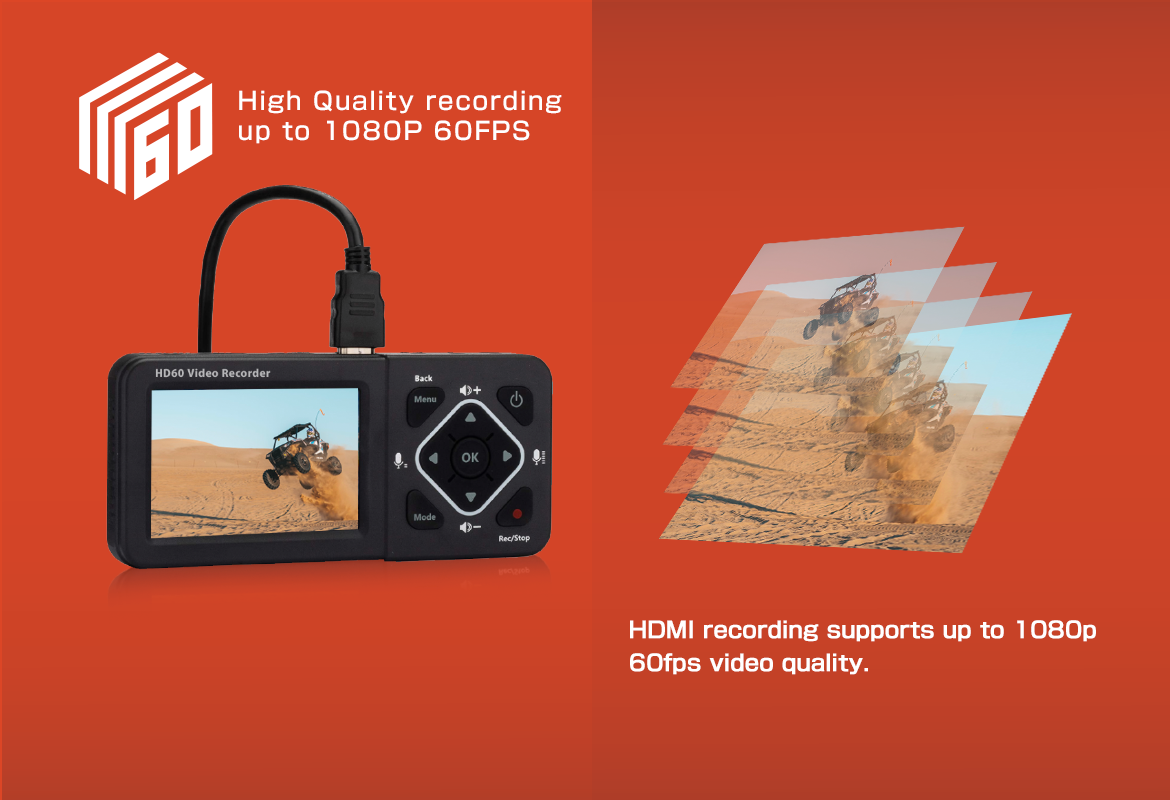

| Input Resolution | 1920×1080 (60p/50p/30p/25p/24p/50i/60i) 1280×720 (60p/50p), 720×480 (60i/p), 720×576 (50i/p) |
| Output Resolution | Playback/loop-through up to 1920×1080 (60p) |
| Video Recording Resolution | Main unit recording: HDMI: 1920×1080, 1280×720 AV: 720×480, 640×480, 720×576 PC Mode recording: 1920×1080, 1280×720 |
| Output Format | MP4 (H.264) |
| Composite Input | NTSC, PAL ※AV Cable included |

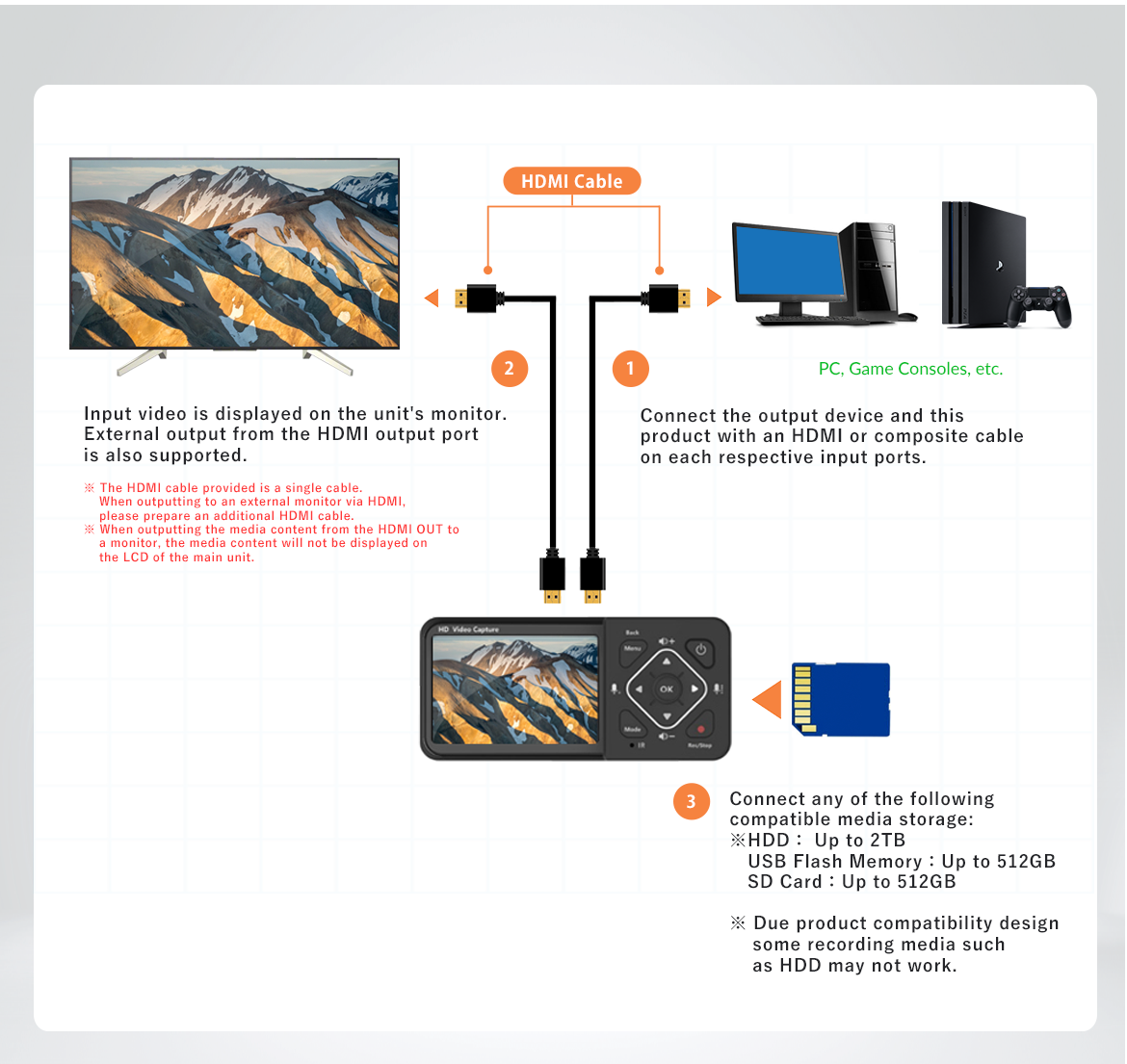

| Input Interface | HDMI, AV, MIC (4-pole CTIA earphone microphone), USB |

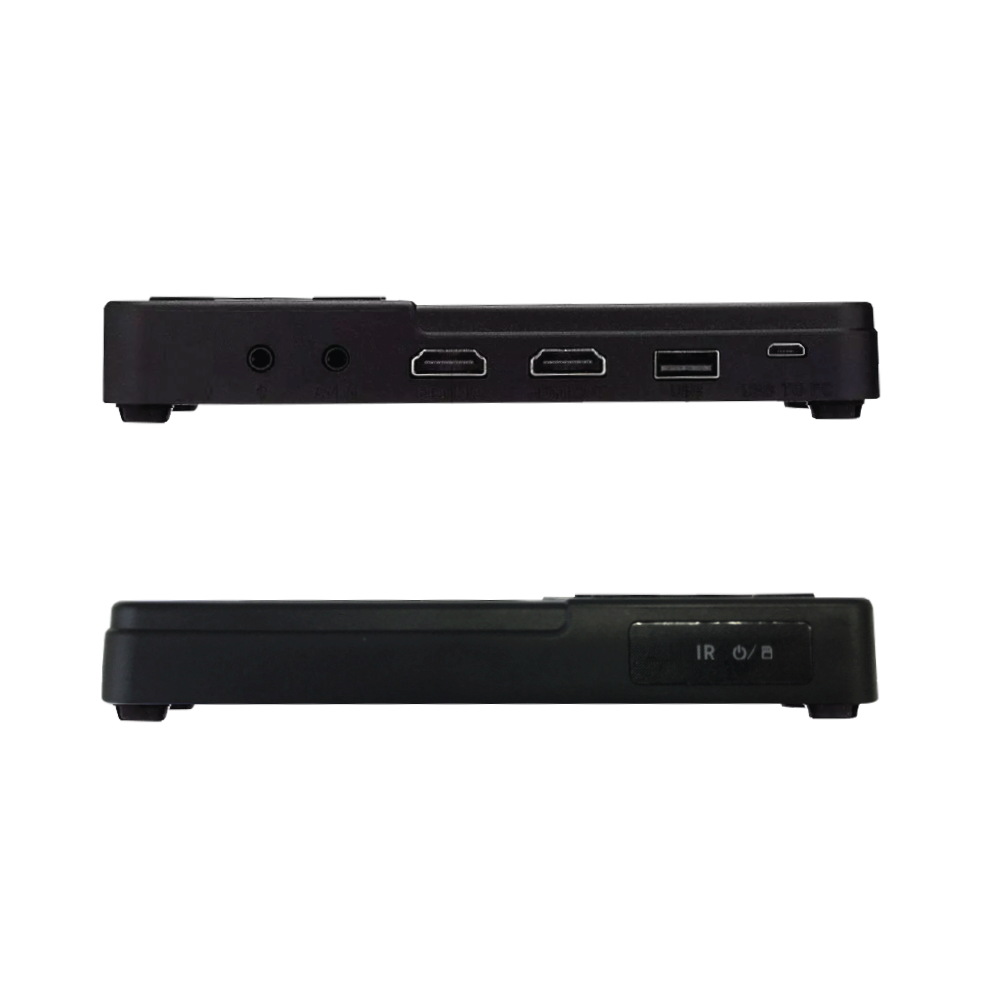

| Output Interface | HDMI, MicroUSB (PC), Earphone, Speaker |
| Supported File Systems | FAT format: 1 file up to 4GB exFAT, NTFS format: 1 file up to 32GB |
| Bitrate | Maximum: 30Mbps |
| Supported Storage Capacity | 2TB (HDD), 512GB (USB Flash Drive), 512GB (SD Card) |
| Estimated Battery Usage | Approximately 2.5 hours (during recording) 3.5 hours (during main unit playback) *Usable time may vary due to battery aging or usage situation |
| Product Dimensions | W158 × D73 × H20mm |
| Weight | 300g |
| Built-in Speaker Output | 1W |
| Power Supply | DC 5V, 2A |

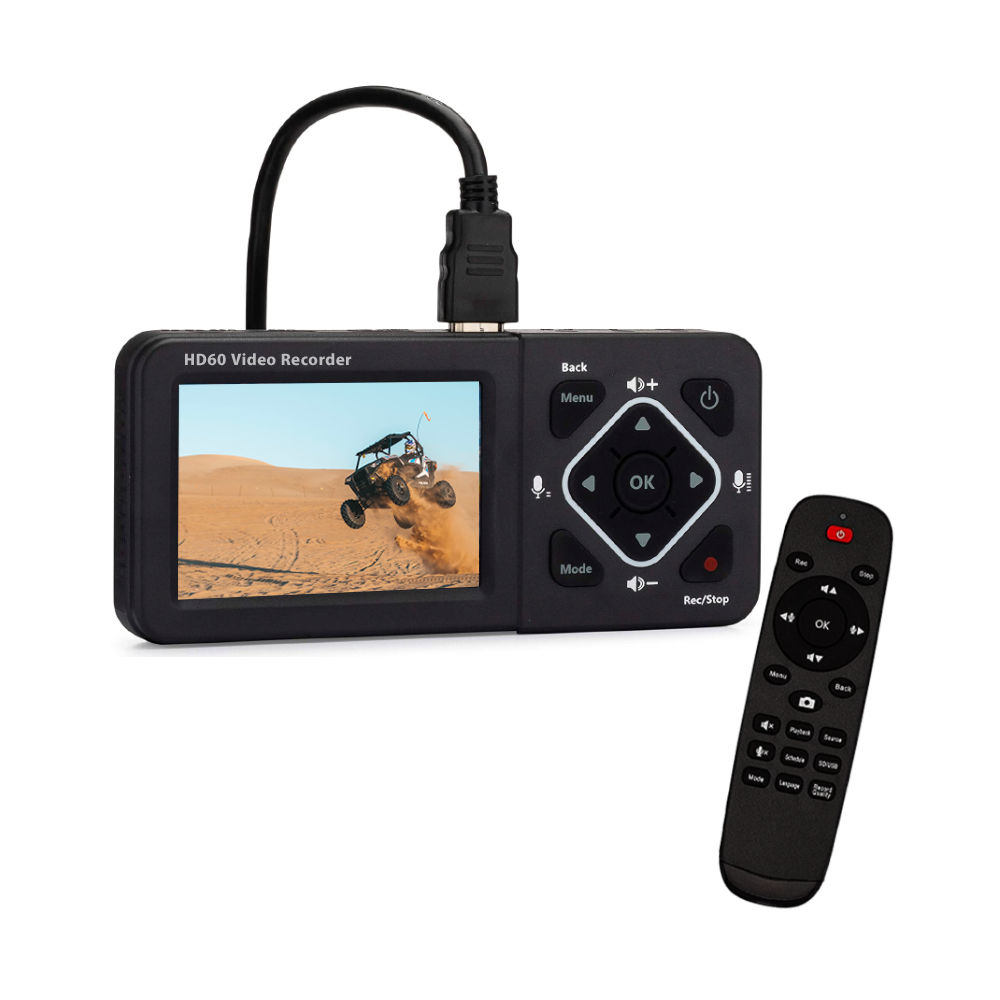

| Package Contents | TMREC-FHD3 main unit, Instruction manual and warranty card, Remote control, HDMI cable, AV connection cable, USB power cable, USB power adapter |
Firmware update instructions:
Before performing the update, please charge the main unit battery to approximately 80%.
Also, please make copies of recorded files, etc., in advance to prepare for the possibility of file loss.
Data and file loss due to update operations are not covered by any warranty.
This update is only possible on Windows OS.
Update Procedure:
① Download the latest version of firmware from the "Latest Firmware Download" section at the bottom of the TMREC-FHD/TMREC-4KS product page. After downloading, extract it on the desktop, and copy the stored firmware file to the root folder (top-most hierarchy) of the SD/MicroSD card.
② Copy the extracted .img file to USB memory or SD/MicroSD card.
③ Connect the USB memory or SD/MicroSD card containing the firmware to TMREC-FHD/TMREC-4KS/TMREC-4KMAX, turn off the power, and restart it.
④ The firmware update confirmation will be displayed automatically, and by confirming, the update will start automatically, so please wait until completion.
That concludes the procedure.RetryClaude can make mistakes. Please double-check responses.
Before performing the update, please charge the main unit battery to approximately 80%.
Also, please make copies of recorded files, etc., in advance to prepare for the possibility of file loss.
Data and file loss due to update operations are not covered by any warranty.
This update is only possible on Windows OS.
Update Procedure:
① Download the latest version of firmware from the "Latest Firmware Download" section at the bottom of the TMREC-FHD/TMREC-4KS product page. After downloading, extract it on the desktop, and copy the stored firmware file to the root folder (top-most hierarchy) of the SD/MicroSD card.
② Copy the extracted .img file to USB memory or SD/MicroSD card.
③ Connect the USB memory or SD/MicroSD card containing the firmware to TMREC-FHD/TMREC-4KS/TMREC-4KMAX, turn off the power, and restart it.
④ The firmware update confirmation will be displayed automatically, and by confirming, the update will start automatically, so please wait until completion.
That concludes the procedure.RetryClaude can make mistakes. Please double-check responses.
※This product does not guarantee operation with all connected devices.
※2.5 inch HDD is recommended.
※Playback on this device is limited to videos recorded using this product only. MP4 (H.264 files) not recorded by this device cannot be played back.
※When formatting recording media with this product, the format will be set to FAT32. To change to other format types, you will need to format using a PC.
※When formatting with a PC, it is limited to Windows only due to product specifications.
※2.5 inch HDD is recommended.
※Playback on this device is limited to videos recorded using this product only. MP4 (H.264 files) not recorded by this device cannot be played back.
※When formatting recording media with this product, the format will be set to FAT32. To change to other format types, you will need to format using a PC.
※When formatting with a PC, it is limited to Windows only due to product specifications.
