This product has been discontinued

Discontinued on: August 22, 2015

DISCONTINUED

CVHD-001 Composite to HDMI Converter

Model No.:

CVHD-001

JAN:

4533239023329
DISCONTINUED
<span>CVHD-001 Composite to HDMI Converter</span>
<span>CVHD-001 Composite to HDMI Converter</span> thumbnail 1 <span>CVHD-001 Composite to HDMI Converter</span> thumbnail 2 <span>CVHD-001 Composite to HDMI Converter</span> thumbnail 3

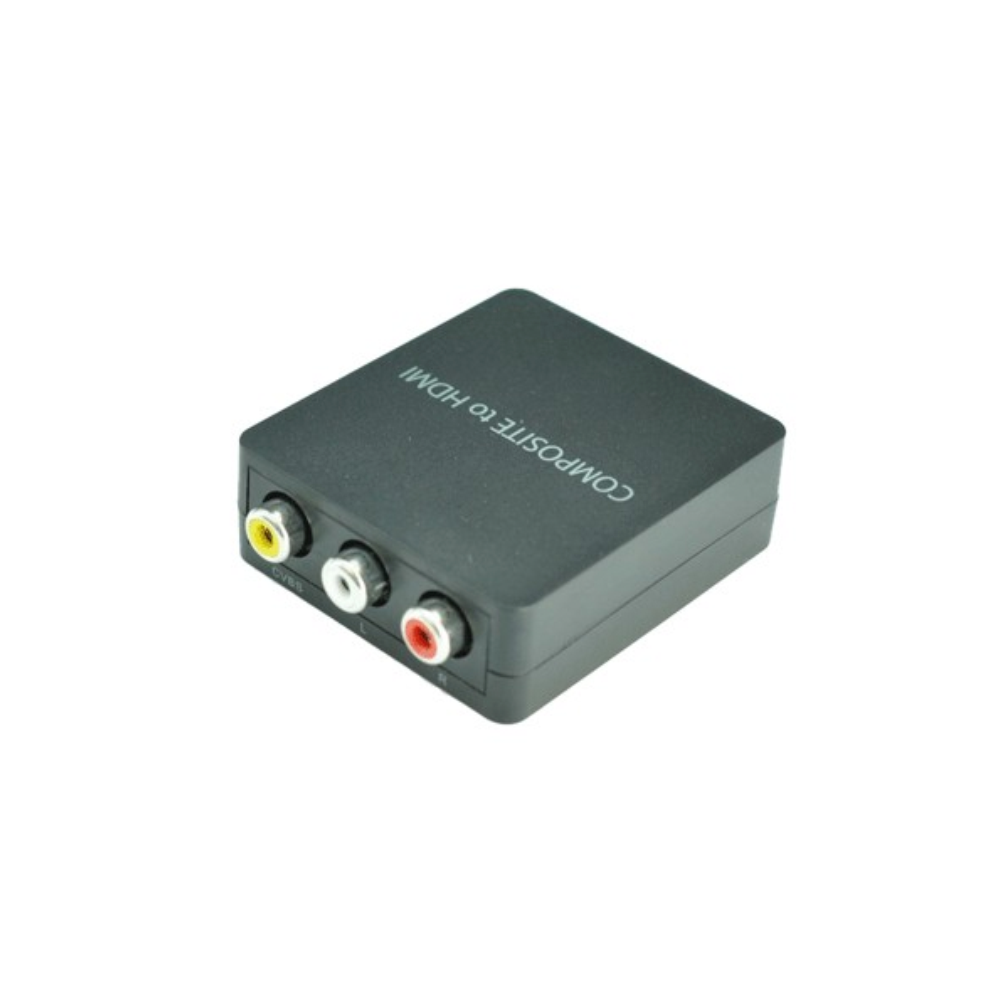

This up-converter converts composite video and audio connections to HDMI.

Video and audio input from analog composite and audio terminals are converted and output via HDMI.

By up-converting analog composite video, it supports output resolutions up to 720p or 1080p.

Power is supplied by the included AC adapter, and no software settings are required, so it can be used simply by connecting it.

Model no.CVHD-001
JAN4533239023329
Video inputComposite
Video outputHDMI
I/O terminalsComposite/HDMI/Audio/miniUSB (for power input)
Output resolution720ｐ/1080ｐ
Audio inputAnalog L / R
Product size (L-W-H)60 x 51 x 20mm
Weight40g
Operating environment0 ℃ to +70℃

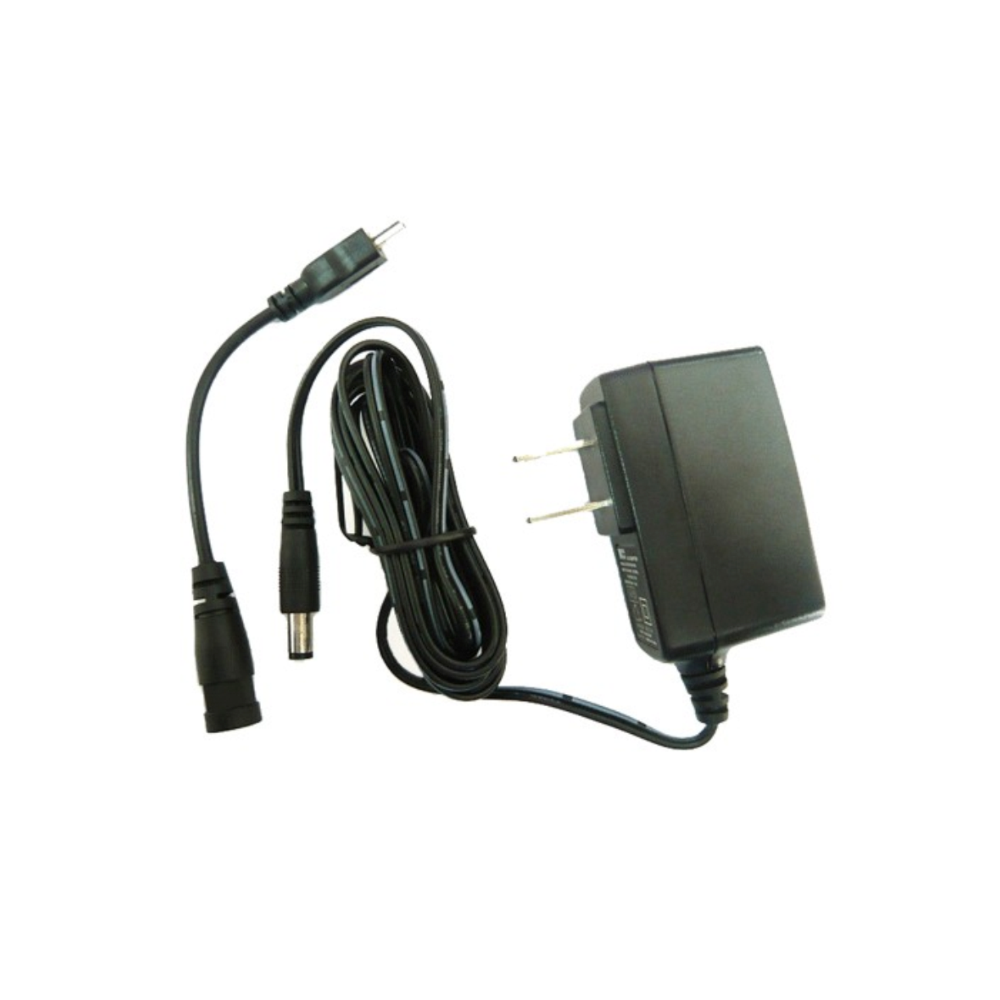

PowerIncluded AC adapter, connected to the unit with an AC-to-USB conversion cable
Power consumption0.5W (max)
*There is an error in the printing on the main unit of the initial production batch. The "720P/1080P" selector switch is labeled "PAL/NTSC".
The correct label is "720P/1080P". This product does not have a "PAL/NTSC" switching function.
