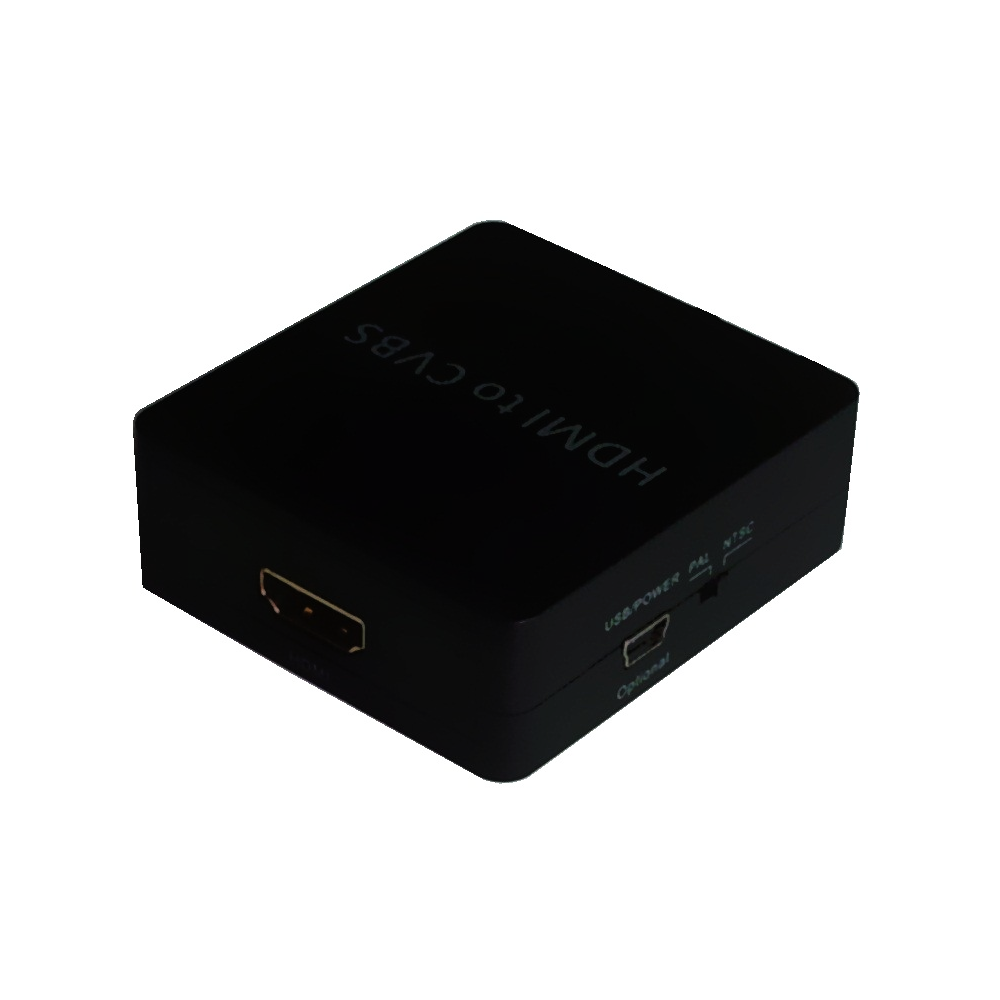

HDCV-001 HDMI to Composite (RCA) Converter

Model No.:

HDCV-001

JAN:

4533239022582
<span>HDCV-001 HDMI to Composite (RCA) Converter</span>
<span>HDCV-001 HDMI to Composite (RCA) Converter</span> thumbnail 1 <span>HDCV-001 HDMI to Composite (RCA) Converter</span> thumbnail 2 <span>HDCV-001 HDMI to Composite (RCA) Converter</span> thumbnail 3 <span>HDCV-001 HDMI to Composite (RCA) Converter</span> thumbnail 4
HDCV-001
Model numberHDCV-001
JAN4533239022582
Video inputHDMI 1.3
Video terminalHDMI 1.3 analog composite
Supported input resolutions640 x 480 @ 60 Hz
800 x 600 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 1024 @ 60 Hz
1360 x 768 @ 60 Hz
1600 x 1200 @ 60 Hz
1920 x 1080 @ 60 Hz
480P 60 Hz
480i 60 Hz
576i 60Hz
576 p 60 Hz
720 p 50/60 Hz
1080 I 50/60 Hz
1080 p 50/60 Hz
Output resolution480i (720 X 480)
Input / output terminalComposite / HDMI / Audio / miniUSB
Body size (LWH)66 x 55 x 20 mm
Weight0.040 Kg
Operating temperature0 ° C to + 70 ° C
Power supplySupplied from connected device or USB (500mA)
Power consumption0.5 watts (maximum)
AccessoriesAC adapter, Japanese manual and warranty
Environmental considerationsConformity to EU RoHS order
