This product has been discontinued

Discontinued on: August 22, 2016

DISCONTINUED

TEHDMIEX50R HDMI Extender 50m

Model No.:

TEHDMIEX50R

JAN:

4533239026375
DISCONTINUED
<span>TEHDMIEX50R HDMI Extender 50m</span>

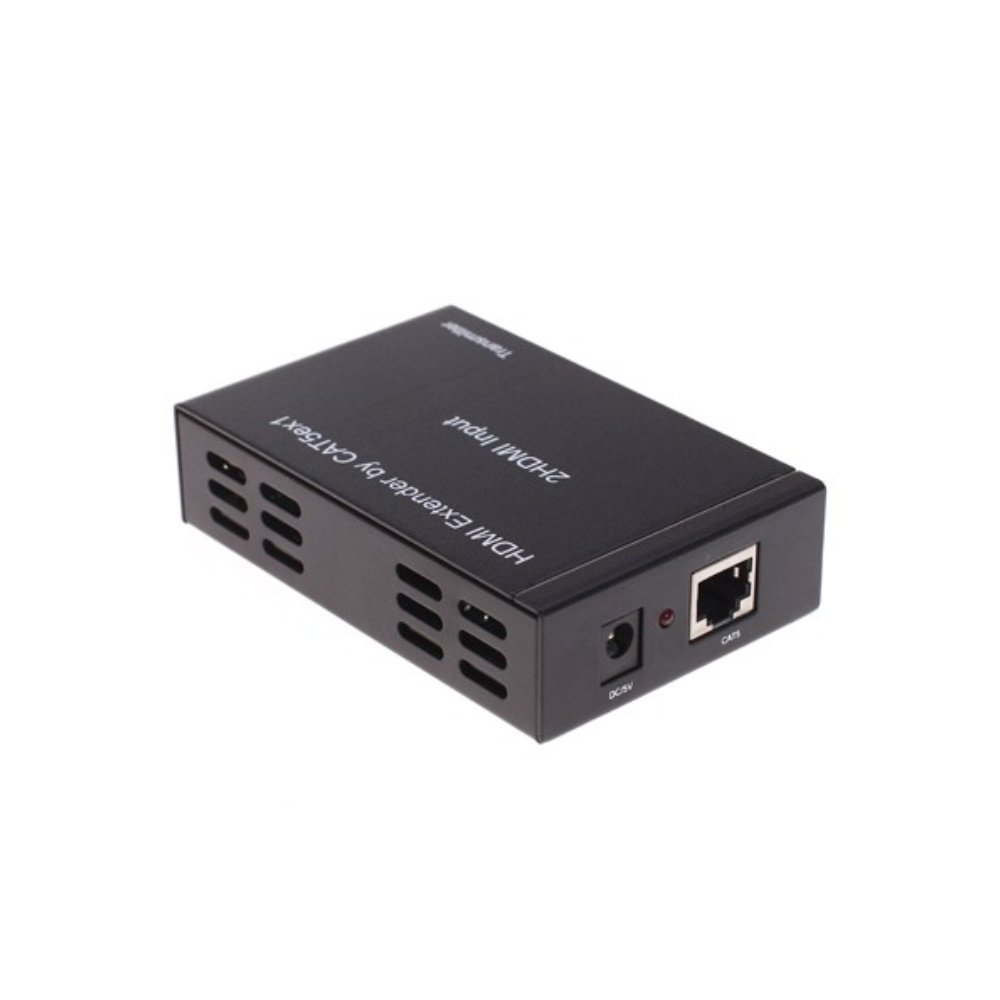

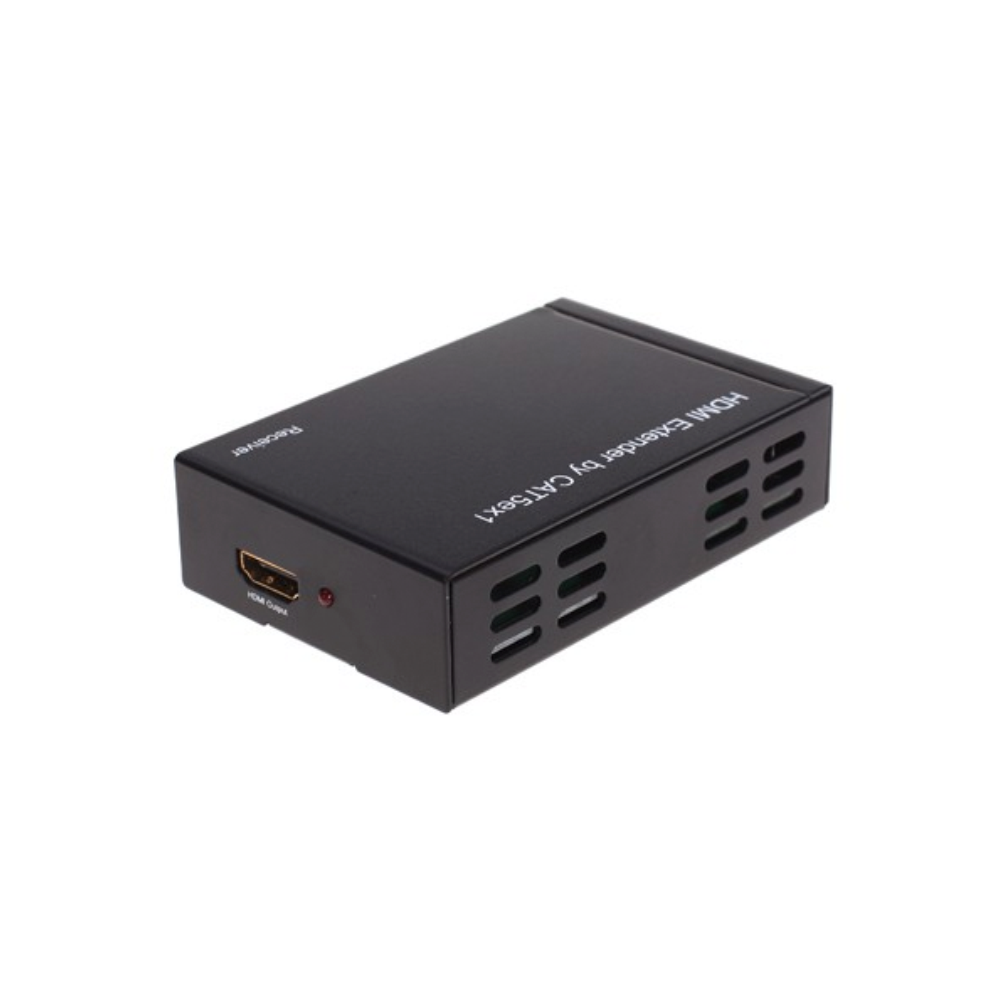

<span>TEHDMIEX50R HDMI Extender 50m</span> thumbnail 1 <span>TEHDMIEX50R HDMI Extender 50m</span> thumbnail 2 <span>TEHDMIEX50R HDMI Extender 50m</span> thumbnail 3

This HDMI extender uses a LAN cable to extend HDMI output up to 50 m.

It also features two HDMI input ports, allowing output switching between two HDMI devices.

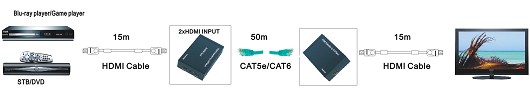

Connection Diagram:

TEHDMIEX50R



Model no.TEHDMIEX50R
JAN4533239026375
Frequency bandwidth2.25Gbps (single link)
HDMI transmitter: Input / Output port2 x HDMI Female port/1 x CAT5E/CAT6
HDMI receiver: Input / Output port1 x HDMI Female port/1 x CAT5E/CAT6
Supported resolution480i/576i/480p/576p/720p/1080i/1080p
HDCPSupported
Product size (mm)65(W) X 100 (D) X 25 (H)
MaterialSteel
Operating temperature0˚C ~ 40˚C
Storage humidity20~90% RH
Power5V AC adapter
AccessoriesTransmitter x1, receiver x1, AC adapter x2, Japanese instruction manual (warranty)
*HDMI cable and LAN cable are not included. Please prepare them separately.
*HDMI-CEC is not supported.
*3D video is not supported.
