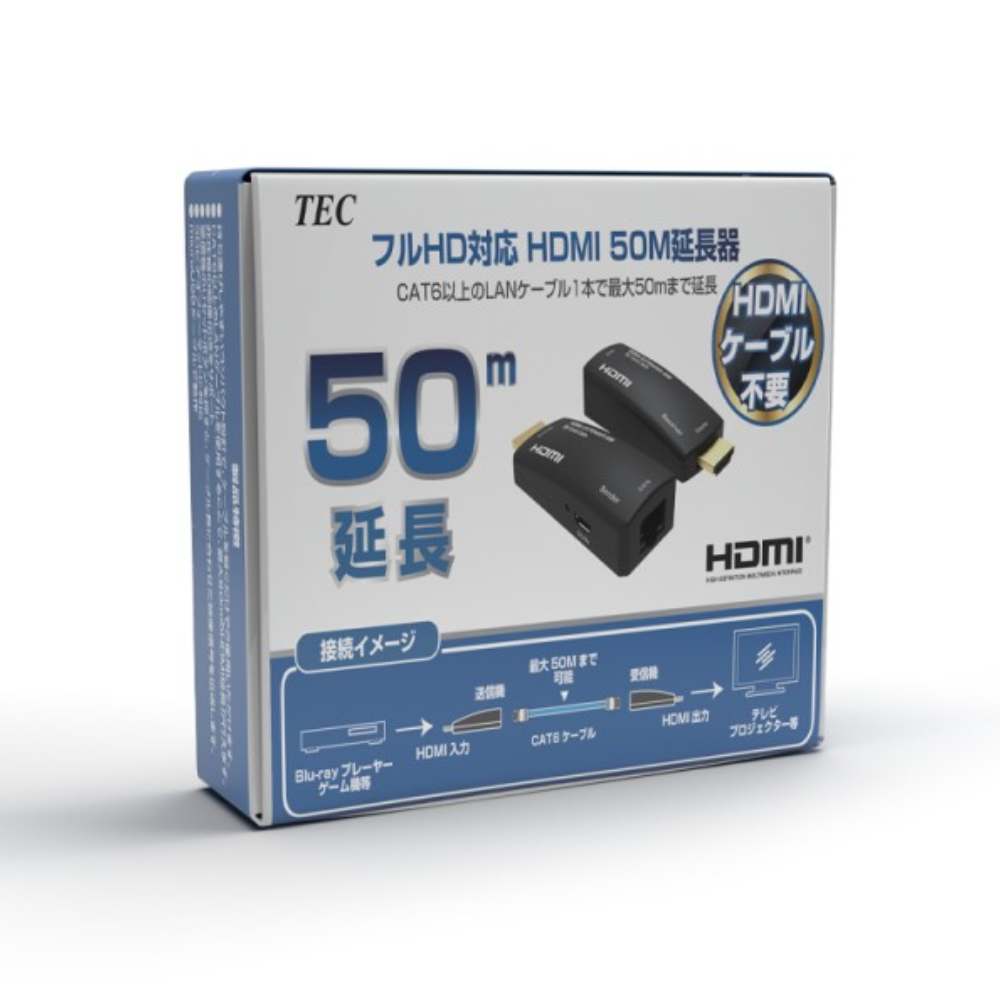

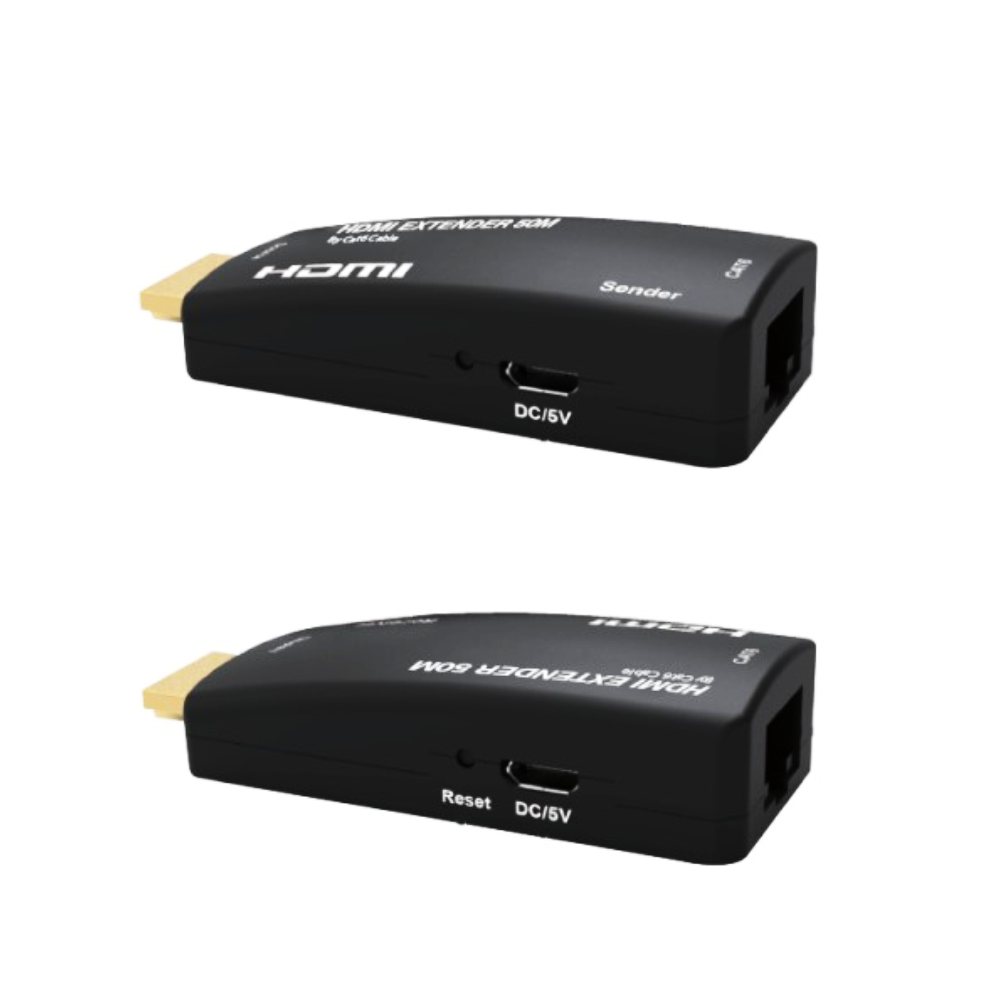

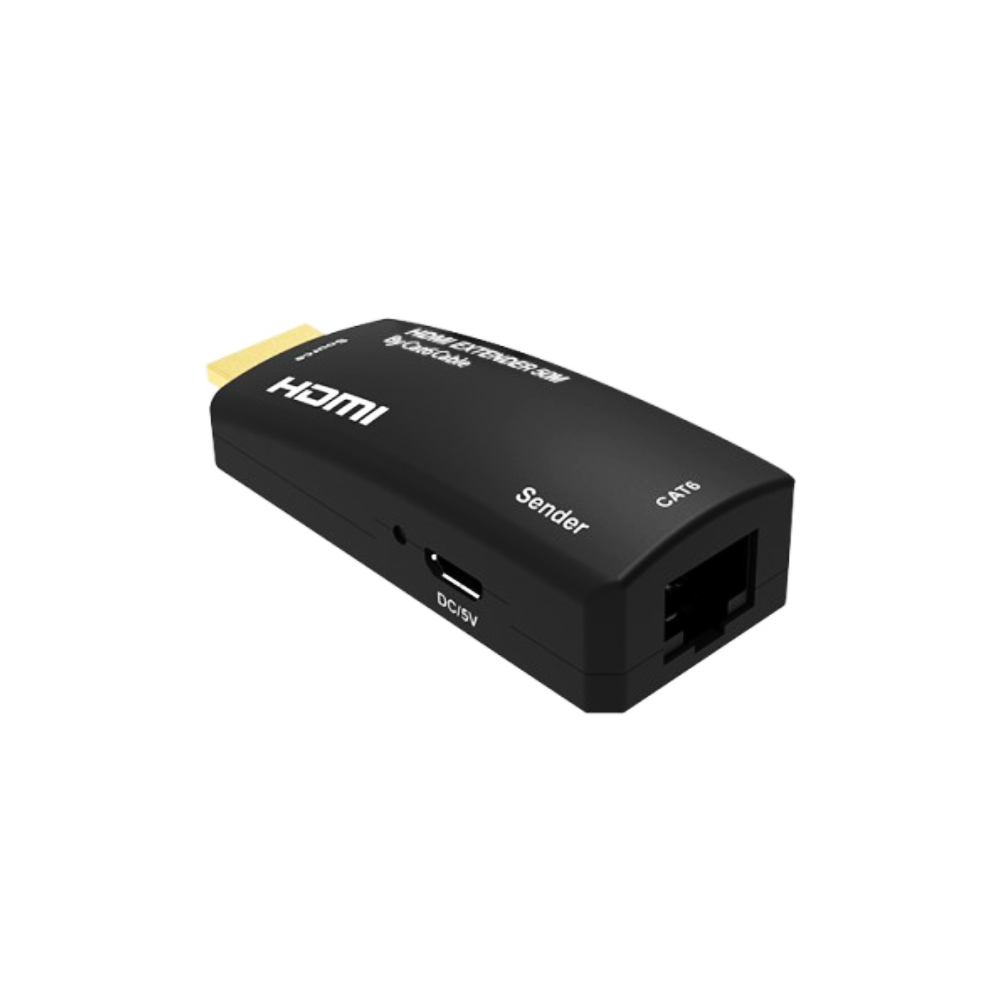

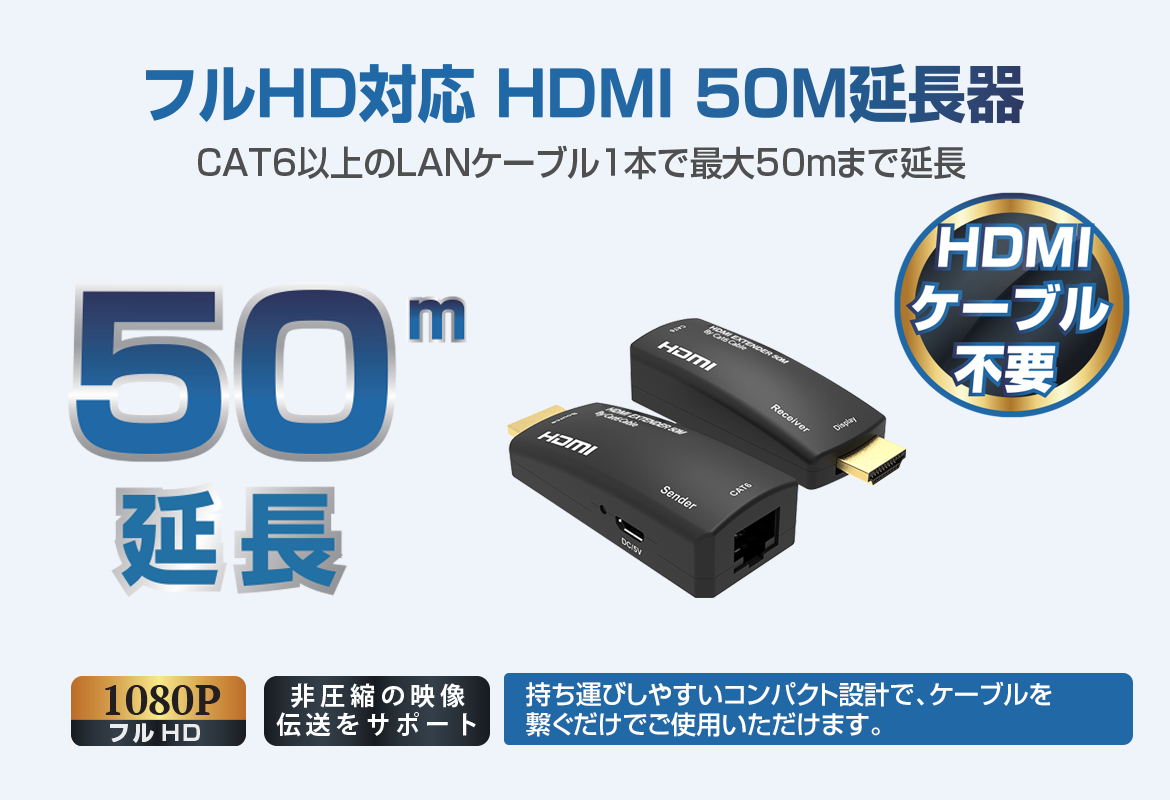

TEHDMIEX50S Full HD HDMI 50-Meter Extender

Model No.:

TEHDMIEX50S

JAN:

4533239033489
<span>TEHDMIEX50S Full HD HDMI 50-Meter Extender</span>
<span>TEHDMIEX50S Full HD HDMI 50-Meter Extender</span> thumbnail 1 <span>TEHDMIEX50S Full HD HDMI 50-Meter Extender</span> thumbnail 2 <span>TEHDMIEX50S Full HD HDMI 50-Meter Extender</span> thumbnail 3 <span>TEHDMIEX50S Full HD HDMI 50-Meter Extender</span> thumbnail 4 <span>TEHDMIEX50S Full HD HDMI 50-Meter Extender</span> thumbnail 5
TEHDMIEX50S



TEHDMIEX50S



TEHDMIEX50S



TEHDMIEX50S



TEHDMIEX50S



TEHDMIEX50S



Model numberTEHDMIEX50S
JAN4533239033489

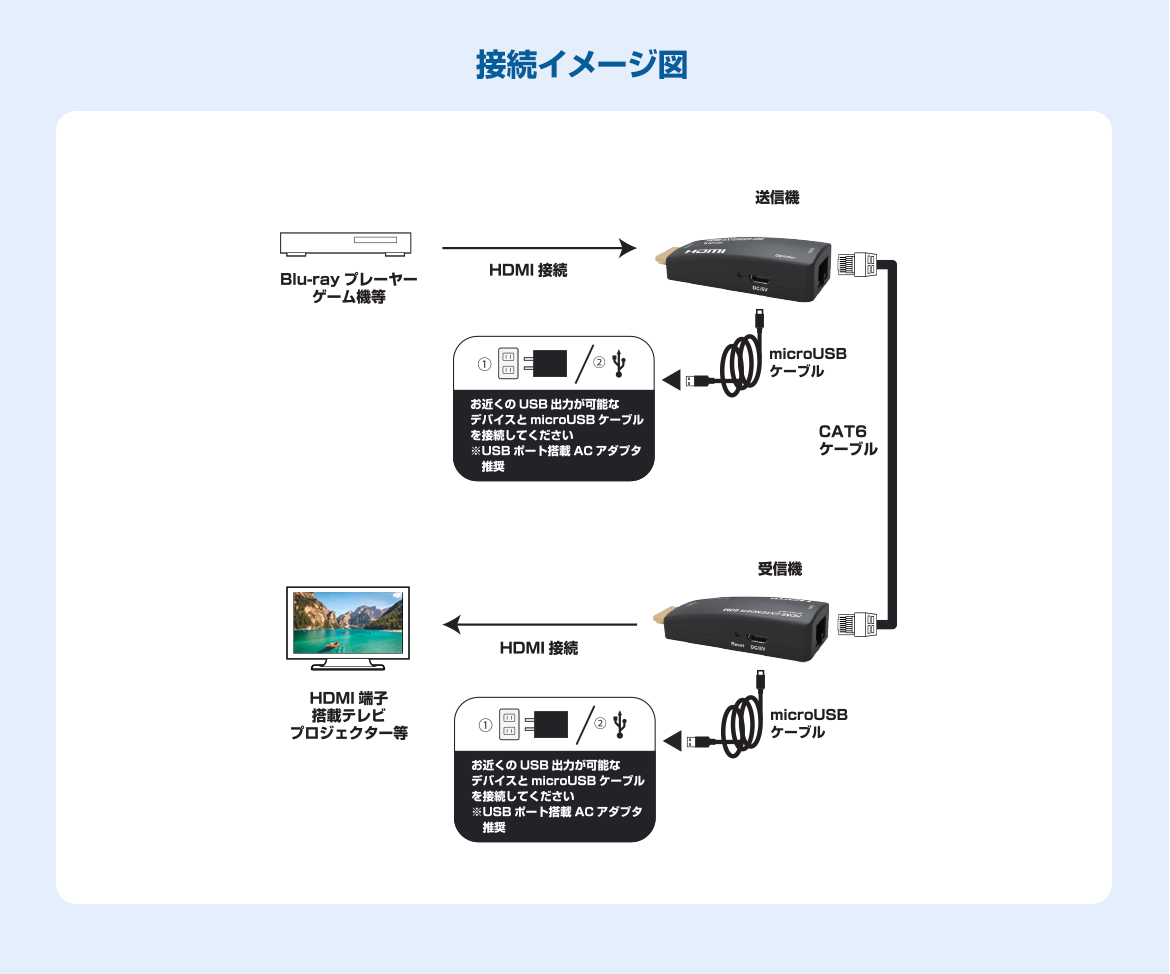

Transmitter connection terminalHDMI x 1, LAN port x 1
Receiver connection terminalHDMI x 1, LAN port x 1

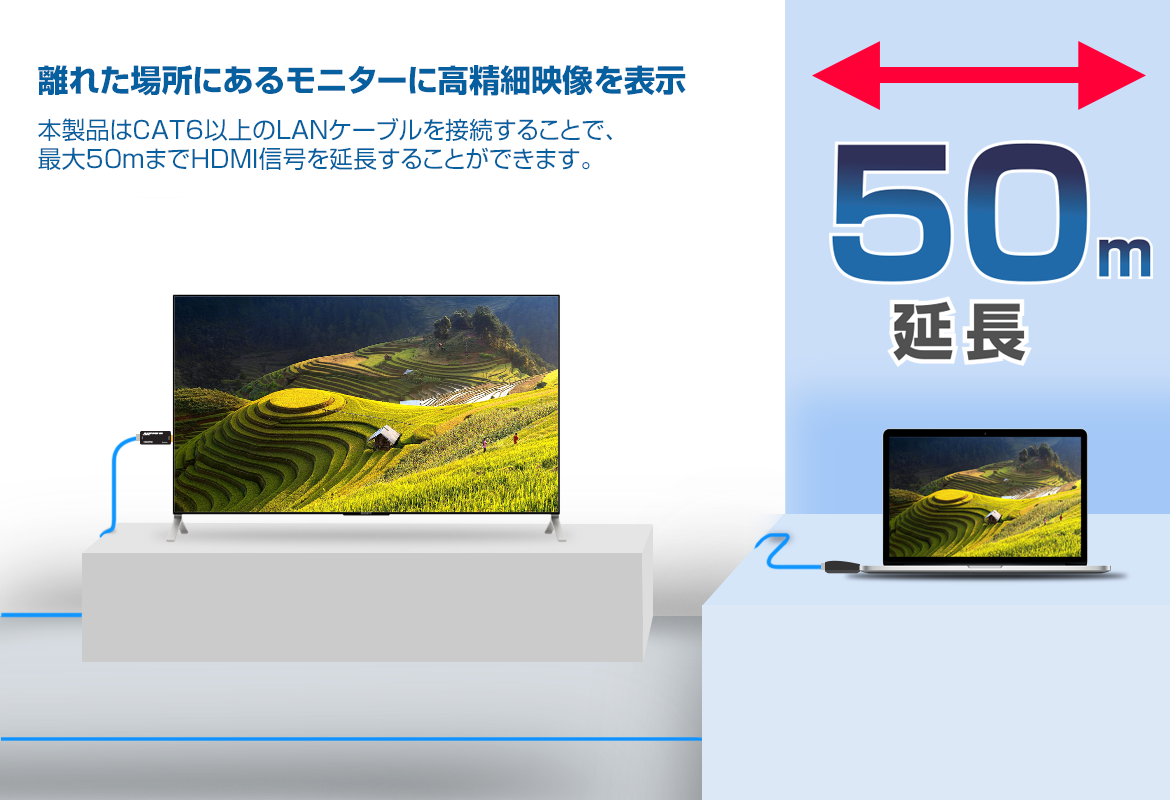

Extend the distanceMaximum 50m (when using CAT6 cable)
Vertical Frequency Range50 / 60Hz
Interlaced Resolution（50＆60Hz）480i、576i、1080i
Progressive Resolution（50＆60Hz）480p、576p、720p、1080p
power supplyPowered via micro USB port
Power consumption (maximum)5W

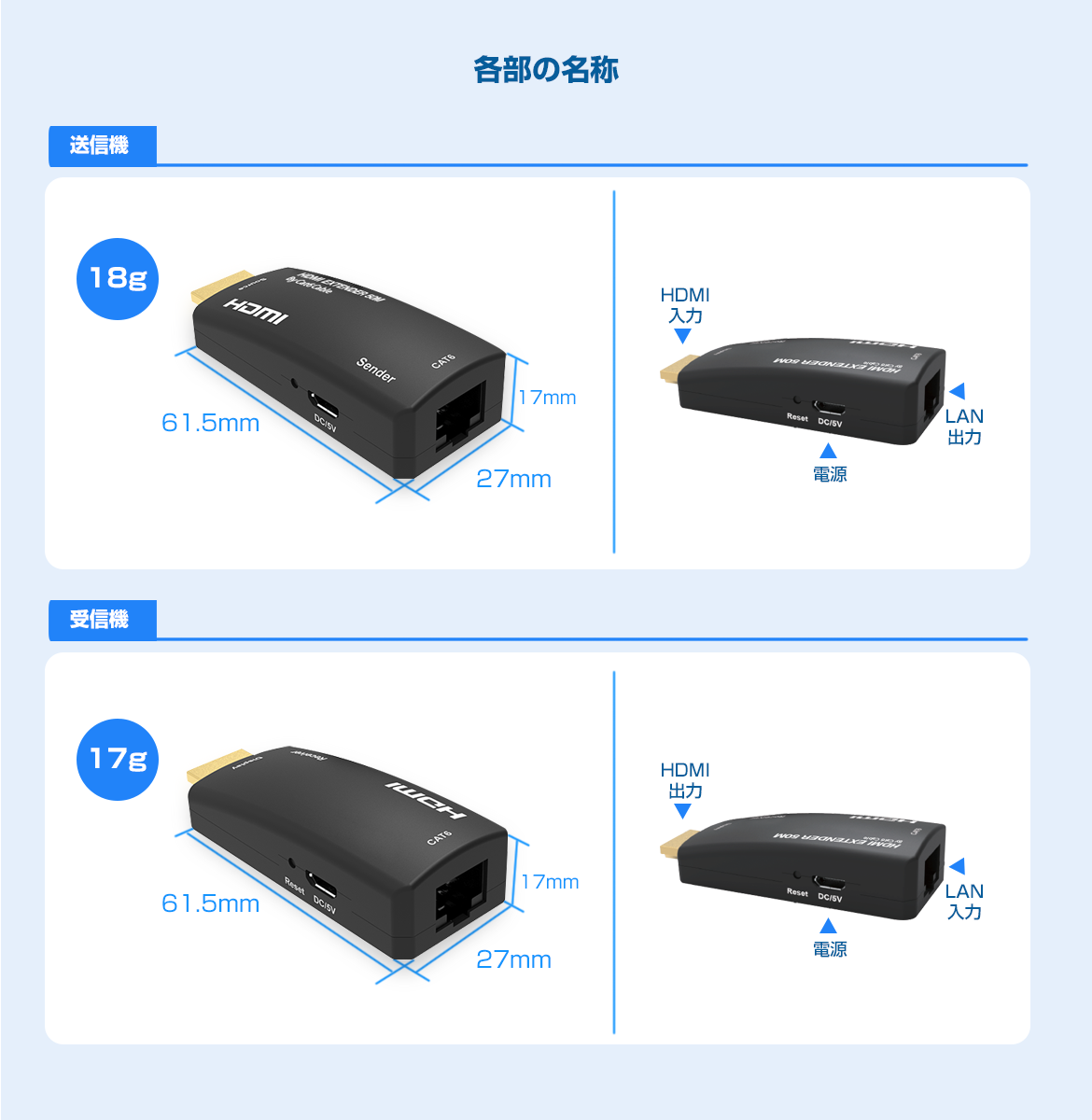

Body size (LWH)62mm x 27mm x 17mm
WeightTransmitter: 18g, Receiver: 17g
※This product can operate with only the transmitter side's power cable connected. However, please note that depending on the power status of the LAN cable, there may be cases where the video is not displayed correctly. Therefore, it is necessary to connect the power cable on the receiver side as well.
