TEHDSPEX70 HDMI Splitter & Extender 2 Output Display Distribution
Model No.:
TEHDSPEX70
JAN:
4533239033236
| Model number | TEHDSPEX70 |
| JAN | 4533239033236 |
HDMI Specifications
| HDMI specifications | HDMI 1.4 compatible |
| HDCP standard | HDCP1.4 compatible |
| Response speed | 297MHz/10.2Gbps |
| Supported input/output resolutions | 480i ~1080p50/60Hz, 4Kx2K@30Hz (4：4：4) |
| Color space | RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0 |
| Color depth | 8-bit,10-bit,12-bit (1080p@60Hz); 8-bit (4K30Hz) |
| Supported HDMI audio formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio |

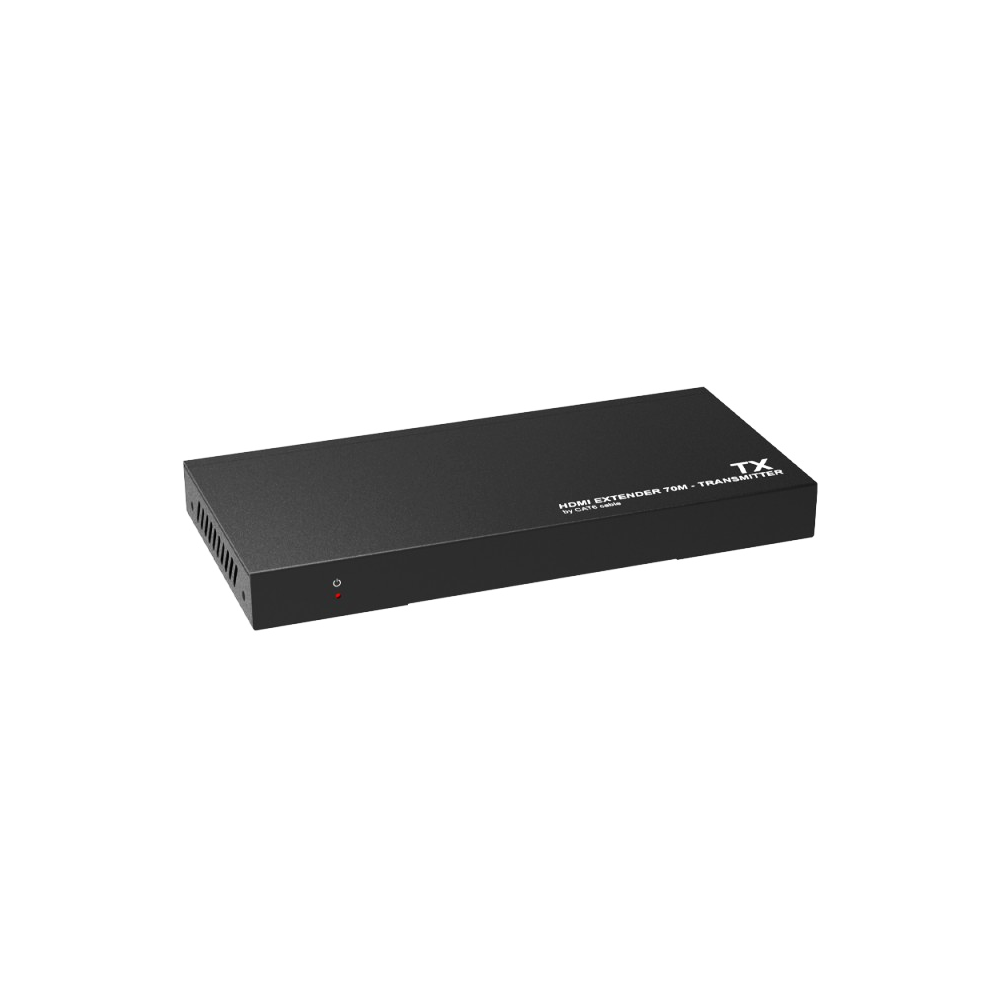

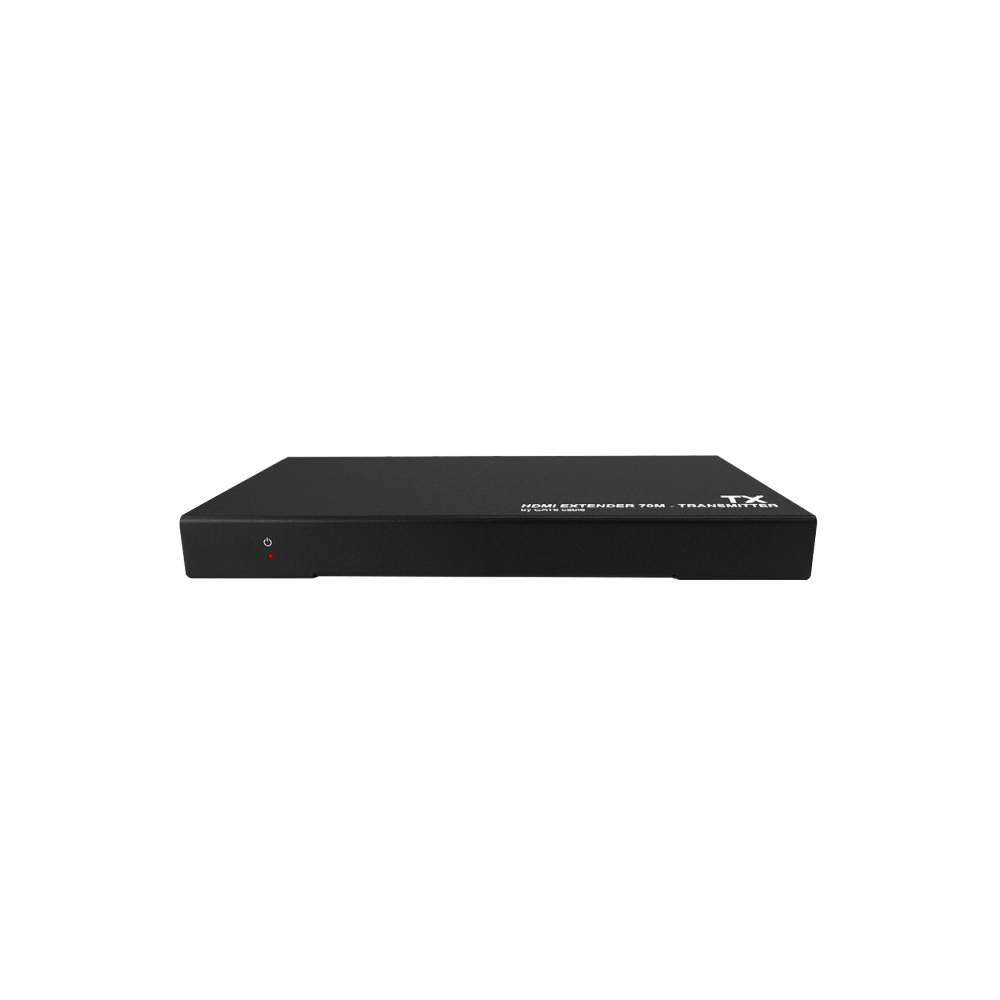

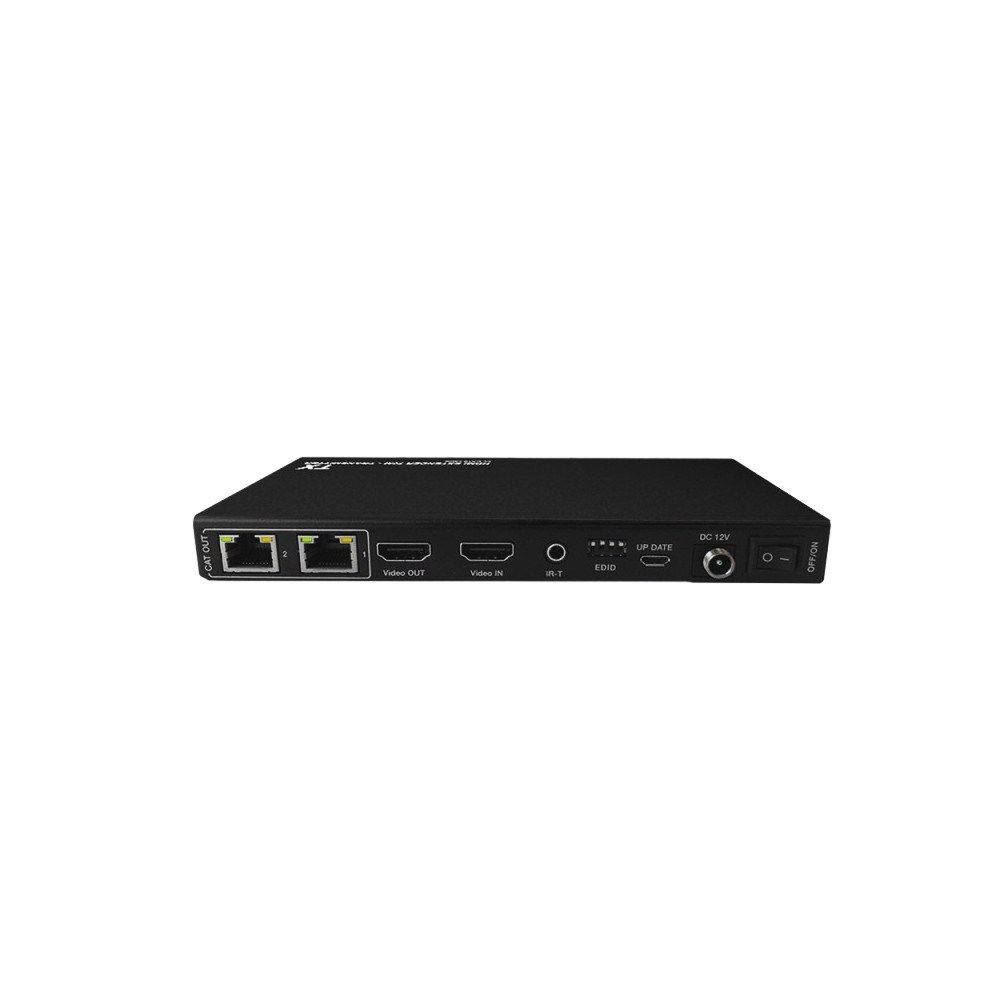

Connection part (Transmitter)
| Input | HDMI Type A (19-pin female) x 1 |
| Output | HDMI Type A (19-pin female) x 1 |
| IR OUT | 3.5mm stereo mini jack x 1 |
| LAN OUT | RJ45, 8-pin female x 2 |

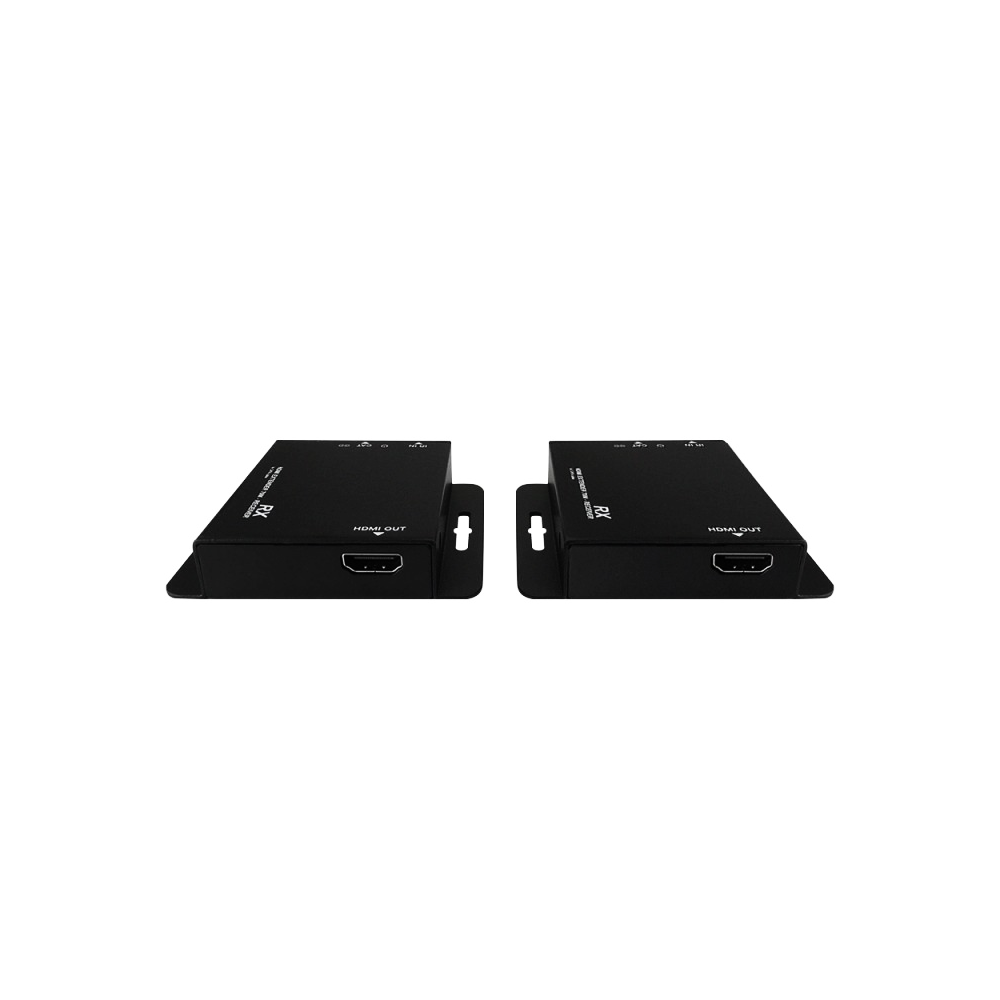

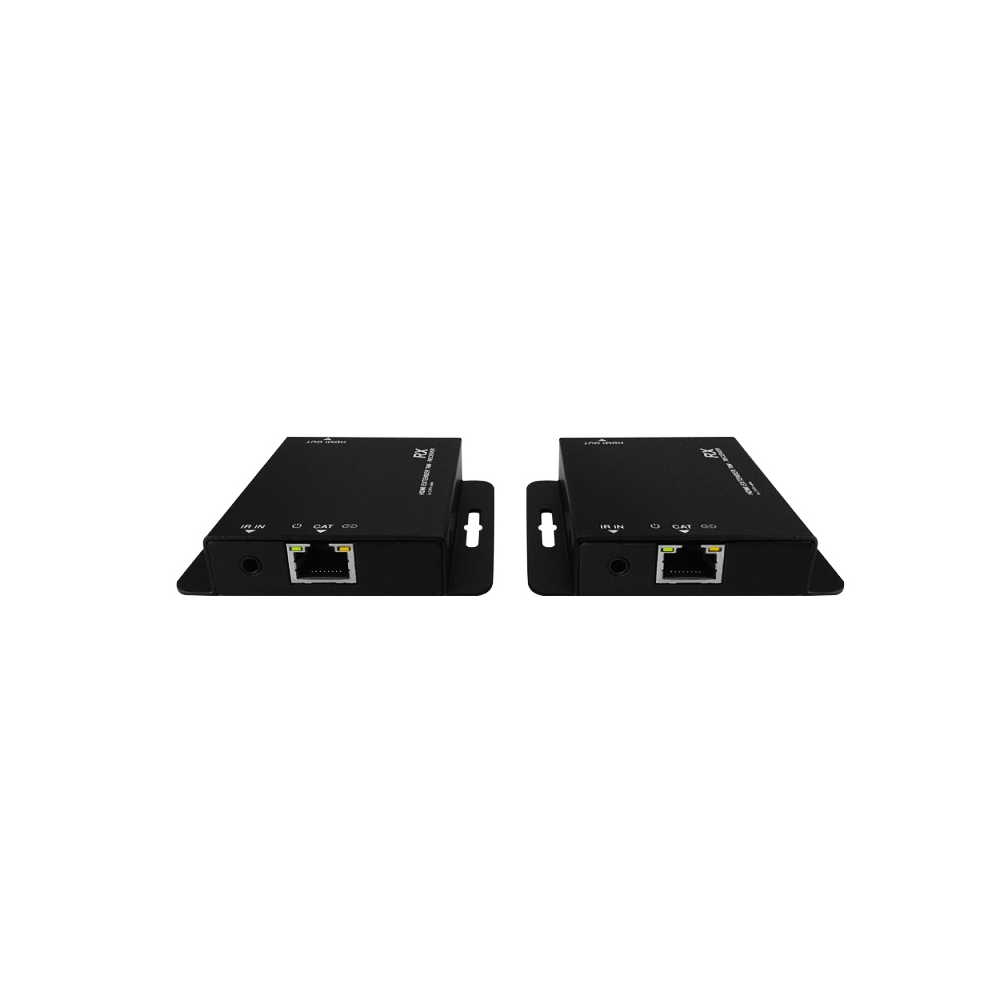

Connection part (Receiver)
| IR input | 3.5mm stereo mini jack x 1 |
| LAN input | RJ45, 8-pin female x 1 |
| Output | HDMI Type A (19-pin female) x 1 |
*This product does not support input/output of 4K 60Hz or higher.
*Please use this product at an extension distance of at least 10m.
*Cascade connections are not recommended due to signal attenuation.
*This product does not include an HDMI cable.
*There is no upscaling or downscaling function, so the output resolution will be uniform.
