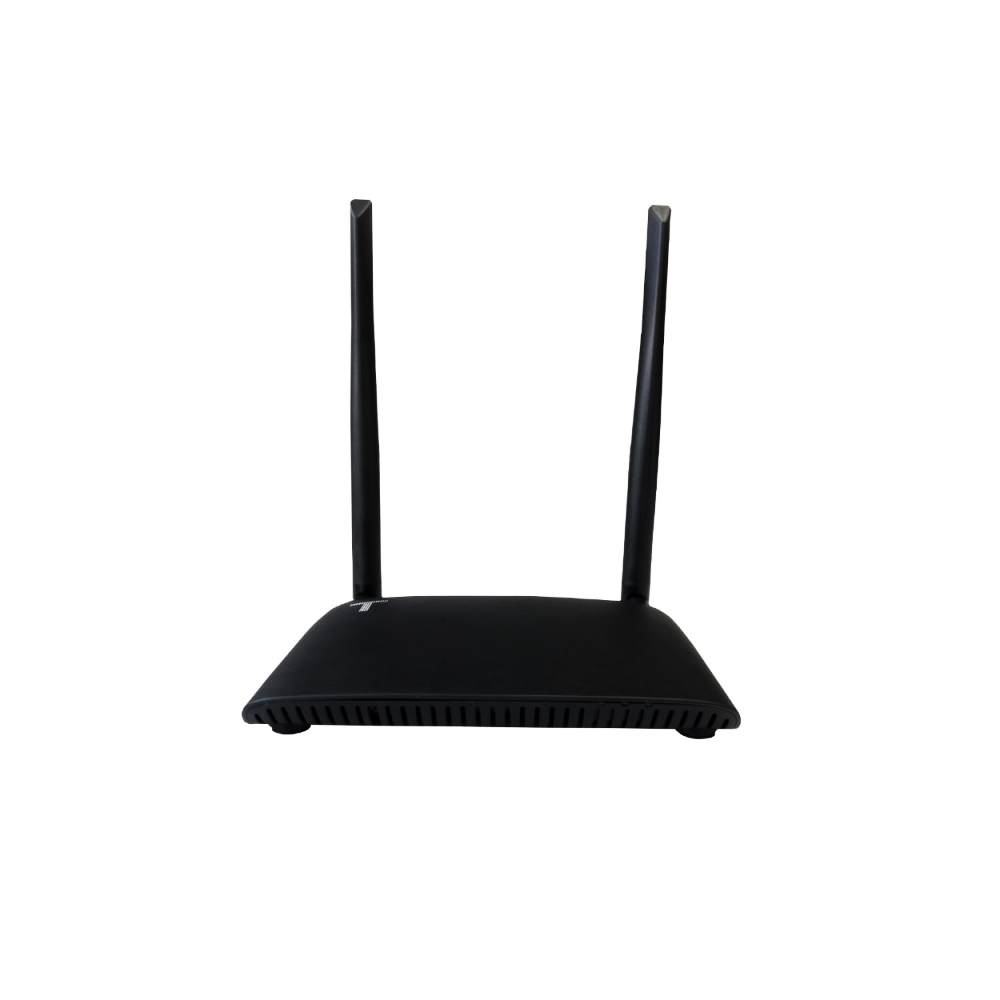

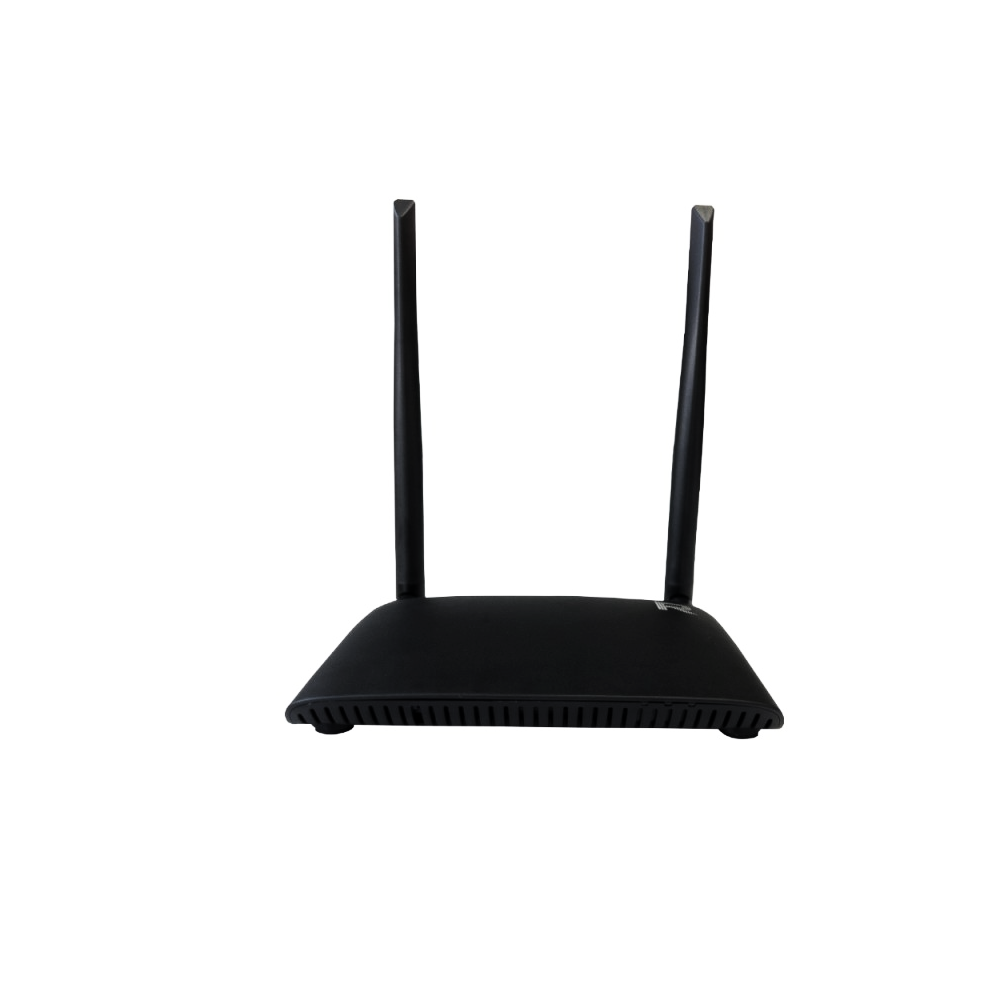

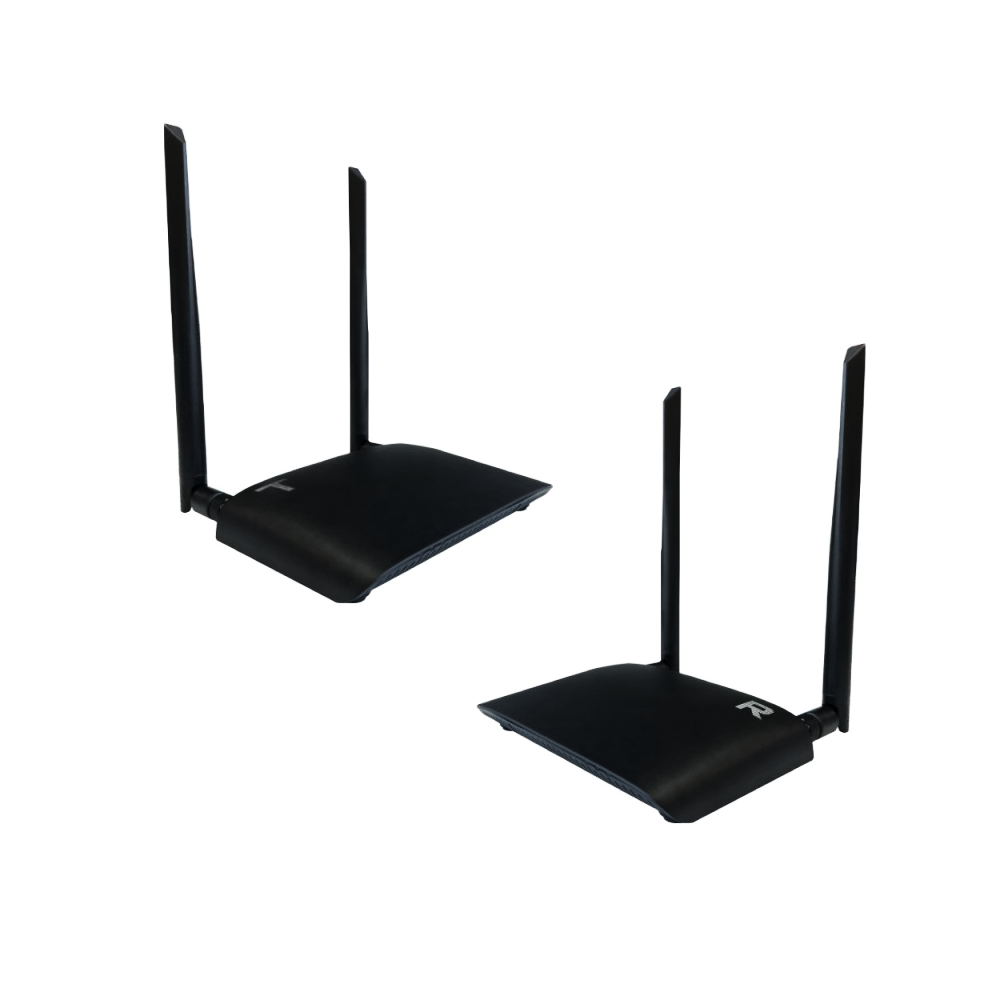

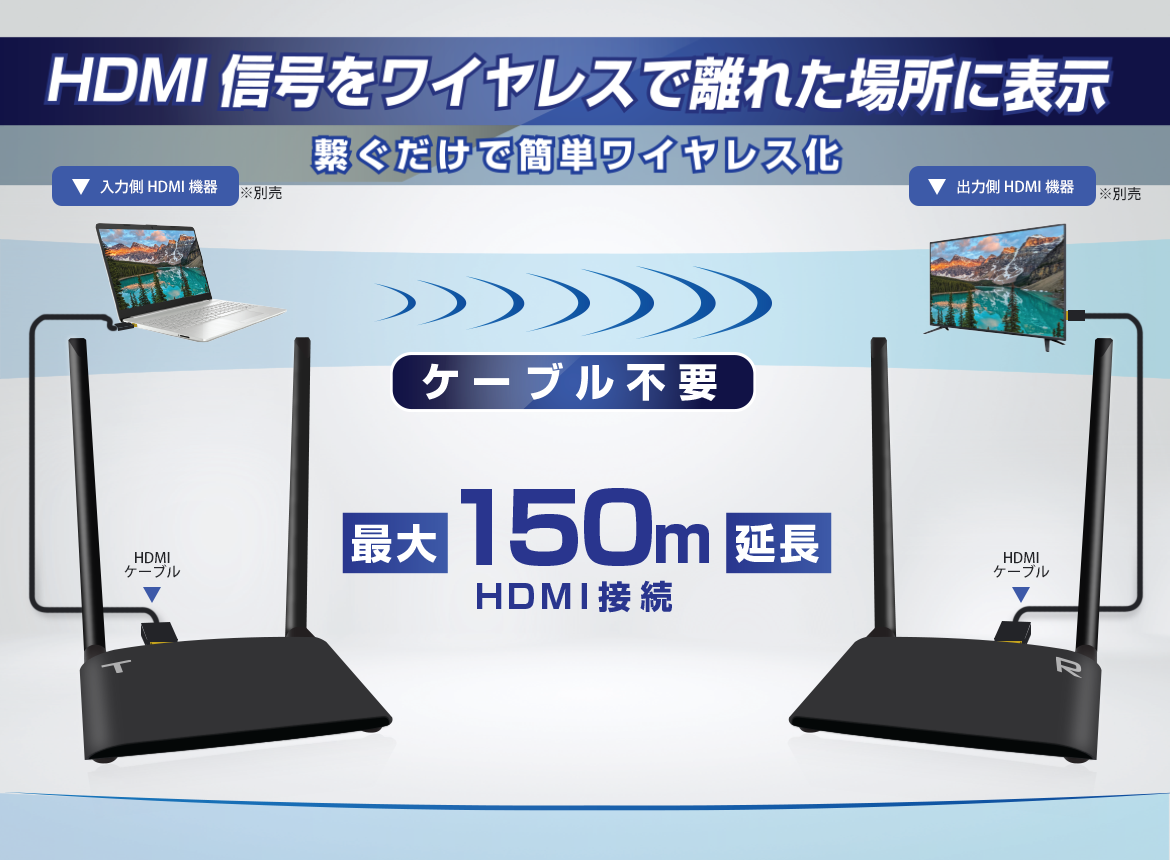

TEHDWLEX150S Wireless HDMI Extender for Wireless Display of HDMI signals in a remote locations up to 150 meters
Model No.:
TEHDWLEX150S
JAN:
4533239033533
| Model No. | TEHDWLEX150S |
| JAN | 4533239033533 |
TRANSMITTER SPECIFICATIONS (TX)
| Input Resolution (HDMI IN) | 4K60/1080p/1080i/720p/576p/480p |
| Output Resolution (HDMI OUT) | Up to 4K (Loop out) |
| Delay Speed | 120ms (Theoretical value) |
| Transmission Distance | Up to 150m ※ When there are no obstacles or radio wave interference |
| Frequency Used | 5GHz 802.11b/g/n (Wi-Fi) |
| Input Power | DC 5V/1A |

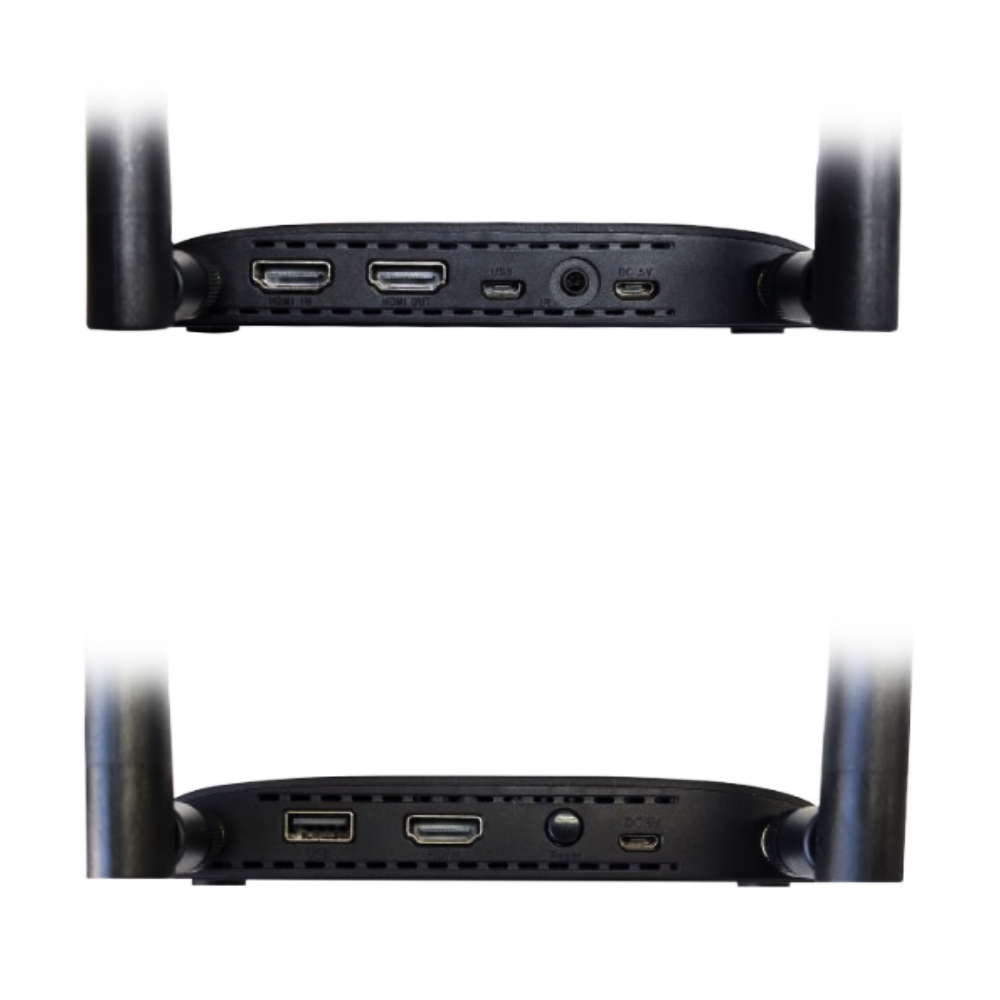

| HDMI Input | × 1 |
| HDMI Output | × 1 |
| IR Cable Connection Terminal | × 1 (Within 5m) ※ For remote control operation |
| USB Connection Terminal | × 1 ※ Requires a separate microUSB to Type-A conversion cable to connect to the HDMI output device ※ May not work depending on the device |
RECEIVER SPECIFICATIONS (RX)
| Output Resolution | 1080i/1080p/720p/576p/480p |
| Delay Speed | 120ms (Theoretical value) |
| Transmission Distance | Maximum 150m ※ When there are no obstacles or interfering radio waves |
| Frequency Used | 5GHz 802.11ac (WiFi) |
| Input Power | DC 5V/1A |
| HDMI Output | × 1 |
| Reset Button | × 1 |
| USB Connection Terminal | × 1 ※ Keyboard and mouse are not included |
*Operating conditions and extended distance may vary depending on the usage environment.
*The maximum extension distance (150m) is the extension distance when there are no obstacles or radio wave interference.
*If the same set is placed in the same room, the device may not be authenticated .
*The extension distance of this product is a theoretical value in an environment free from radio wave interference.
*Because the image signal is transmitted wirelessly, the color and brightness may differ slightly when displayed on the monitor.
*Since this product uses a 1:1 transmitter and receiver, it does not support distribution to the receiver.
* This product does not guarantee the operation of all connected devices and video signals.
*The maximum output resolution of this product is 1080P.
*When using a TV remote control, connect the IR cable for TX to the IR connection terminal on the transmitter side, and use the IR cable and the TV within 5m.
*The maximum extension distance (150m) is the extension distance when there are no obstacles or radio wave interference.
*If the same set is placed in the same room, the device may not be authenticated .
*The extension distance of this product is a theoretical value in an environment free from radio wave interference.
*Because the image signal is transmitted wirelessly, the color and brightness may differ slightly when displayed on the monitor.
*Since this product uses a 1:1 transmitter and receiver, it does not support distribution to the receiver.
* This product does not guarantee the operation of all connected devices and video signals.
*The maximum output resolution of this product is 1080P.
*When using a TV remote control, connect the IR cable for TX to the IR connection terminal on the transmitter side, and use the IR cable and the TV within 5m.
