This product has been discontinued

Discontinued on: April 9, 2019

DISCONTINUED

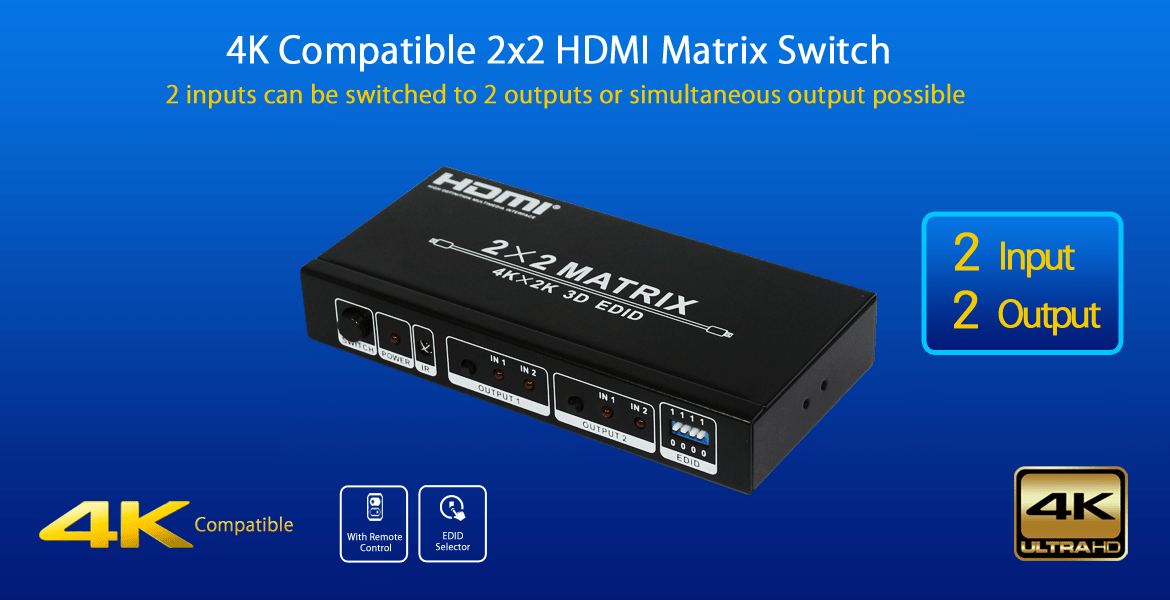

THD22MSP-4K HDMI Matrix Switcher

Model No.:

THD22MSP-4K

JAN:

4533239032024
DISCONTINUED
<span>THD22MSP-4K HDMI Matrix Switcher</span>
<span>THD22MSP-4K HDMI Matrix Switcher</span> thumbnail 1 <span>THD22MSP-4K HDMI Matrix Switcher</span> thumbnail 2 <span>THD22MSP-4K HDMI Matrix Switcher</span> thumbnail 3 <span>THD22MSP-4K HDMI Matrix Switcher</span> thumbnail 4 <span>THD22MSP-4K HDMI Matrix Switcher</span> thumbnail 5 <span>THD22MSP-4K HDMI Matrix Switcher</span> thumbnail 6
THD22MSP-4K



THD22MSP-4K



THD22MSP-4K



THD22MSP-4K



THD22MSP-4K



THD22MSP-4K



MODEL NO.THD22MSP-4K
JAN4533239032024
Input TerminalHDMI X 2
Output TerminalHDMI X 2

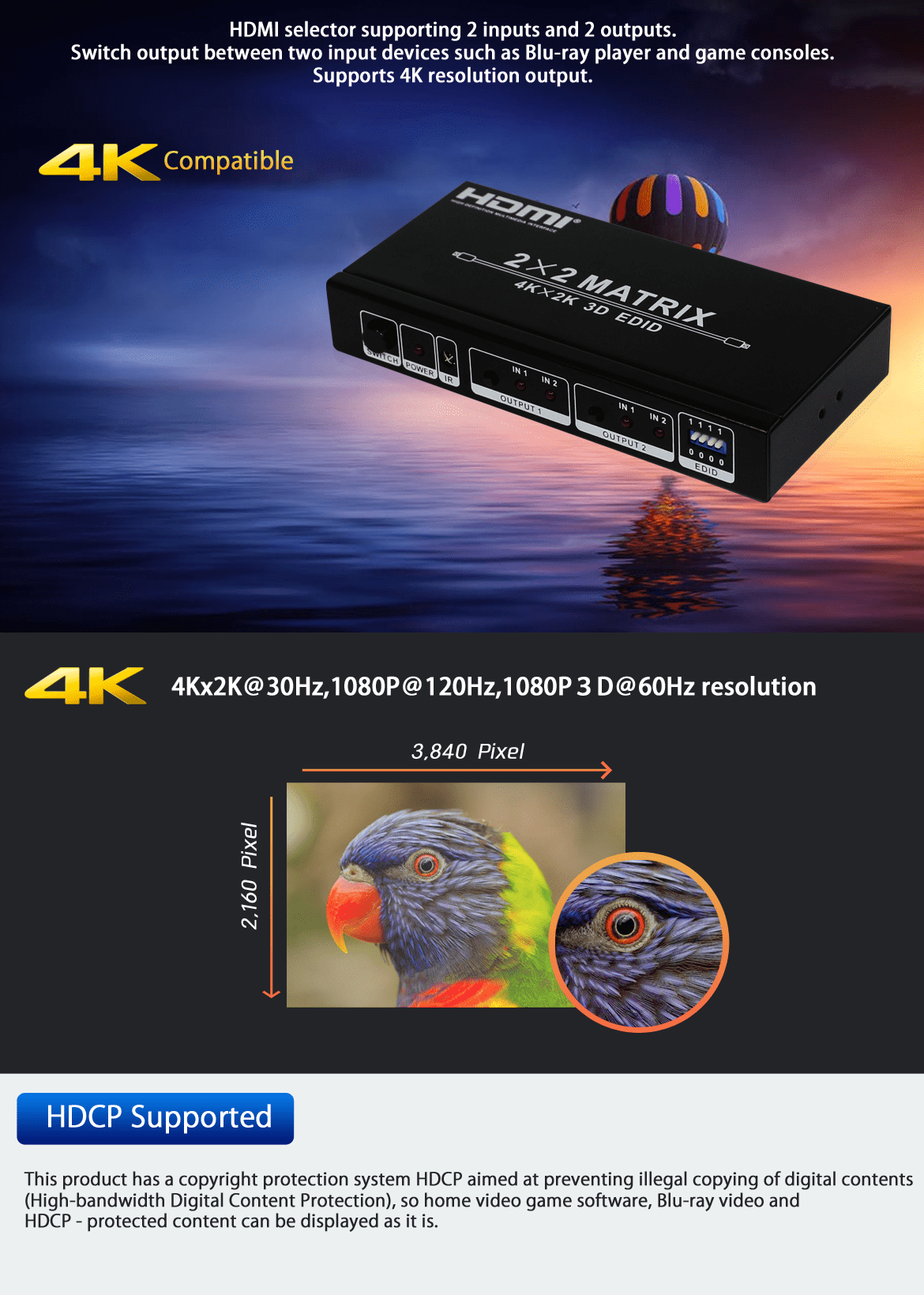

Corresponding Input Resolution4K(3840×2160)@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Compatible Output Resolution4K(3840×2160)@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
HDMI Version1.4a with full 3D and 4K, Input HDCP1.4, Output HDCP1.4a
Data Transfer Rate2.97Gbps/297MHz
Supported Audio FormatUp to 192 kHz, compressed voice (IEC 61937), DSD, DST, DTS and HBR with HDMI 1.4
Power SupplyDC 5V 1A
Body size70 x 145 x 25mm
WeightApproximately 300g
Power Consumption5W (max.)
AccessoriesAC adapter, remote control, instruction manual and warranty card (Japanese)
