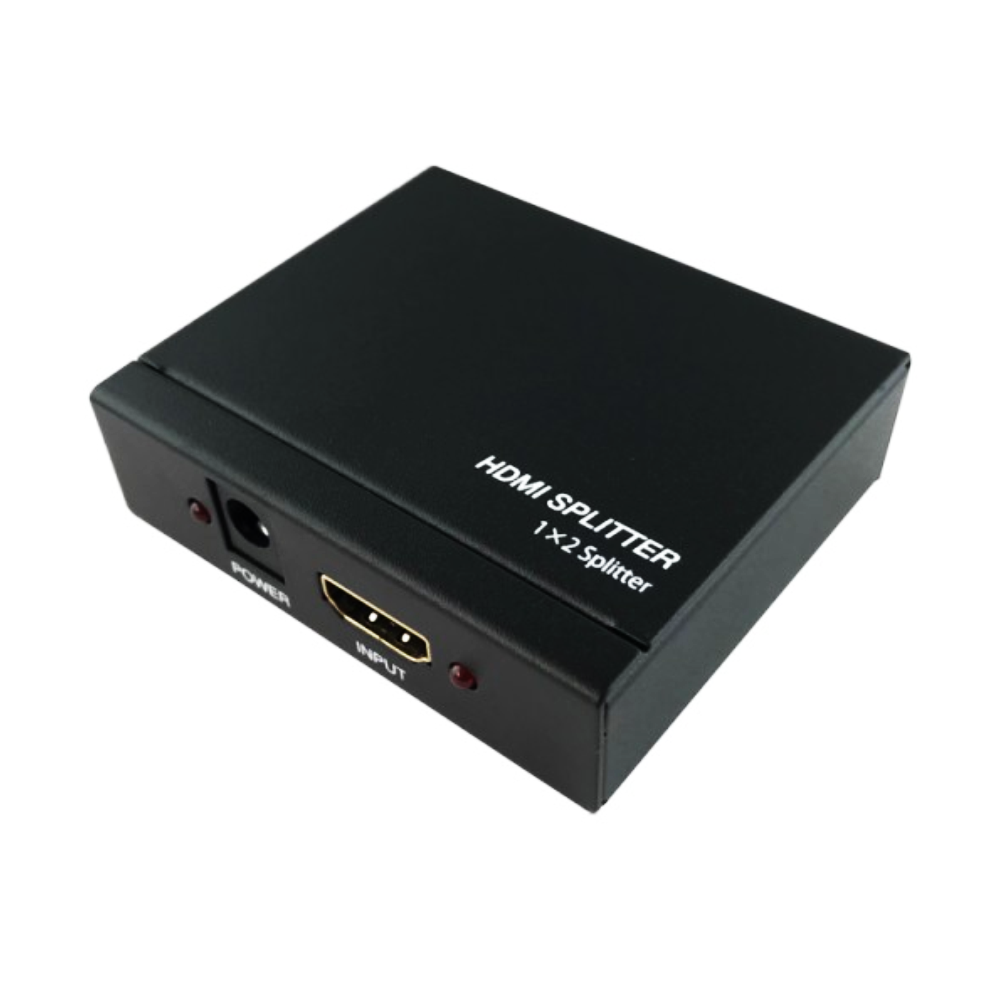

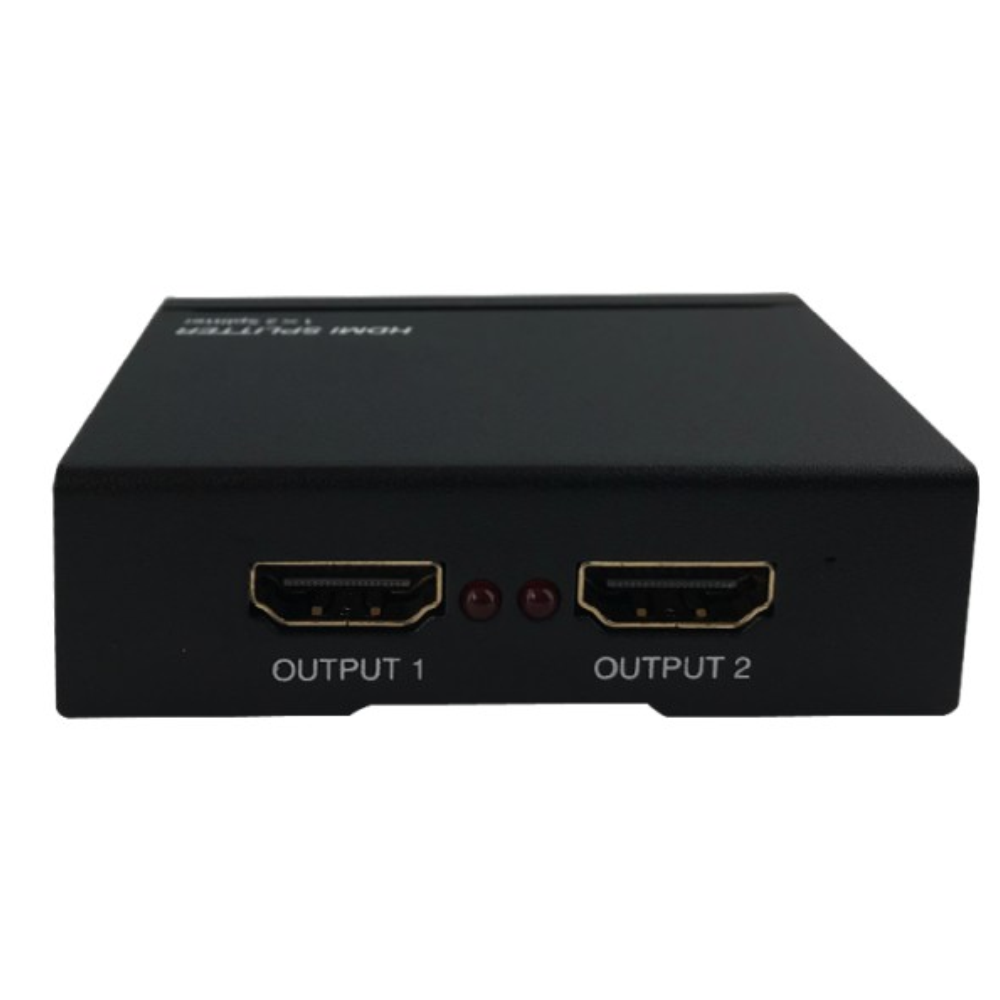

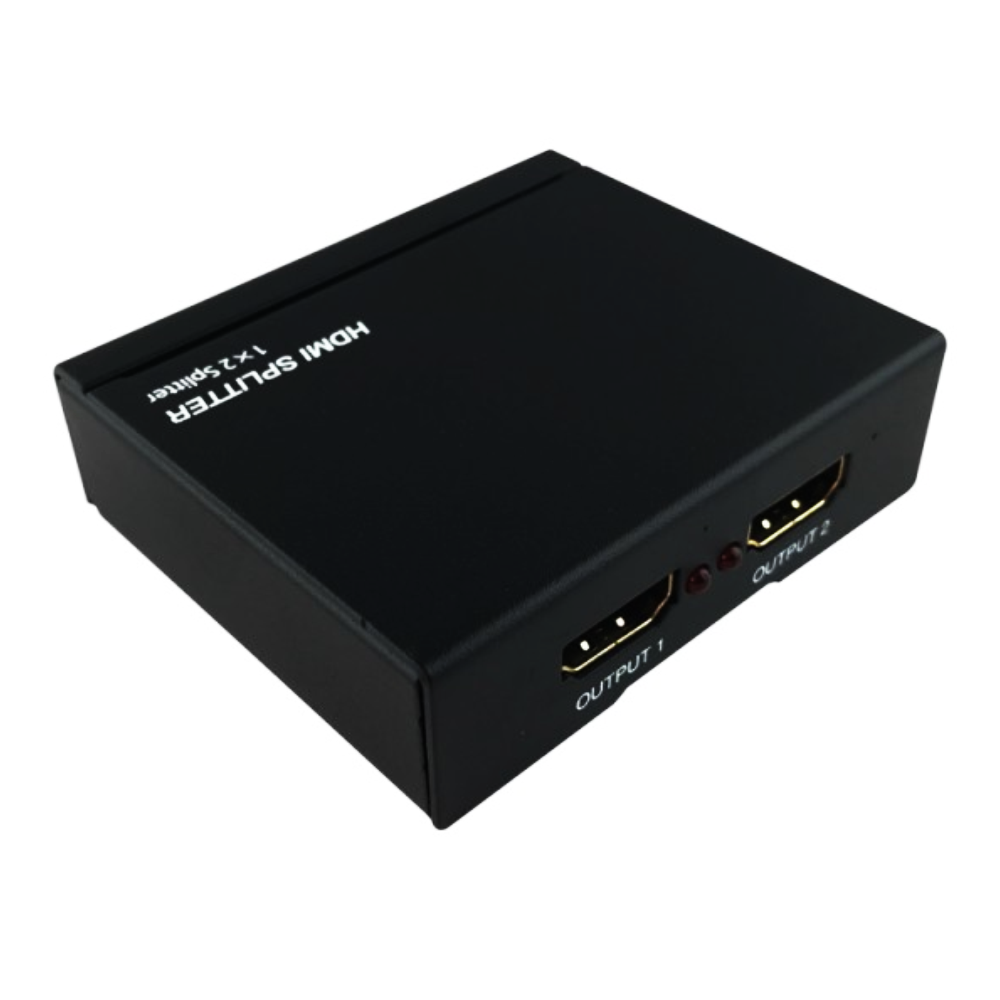

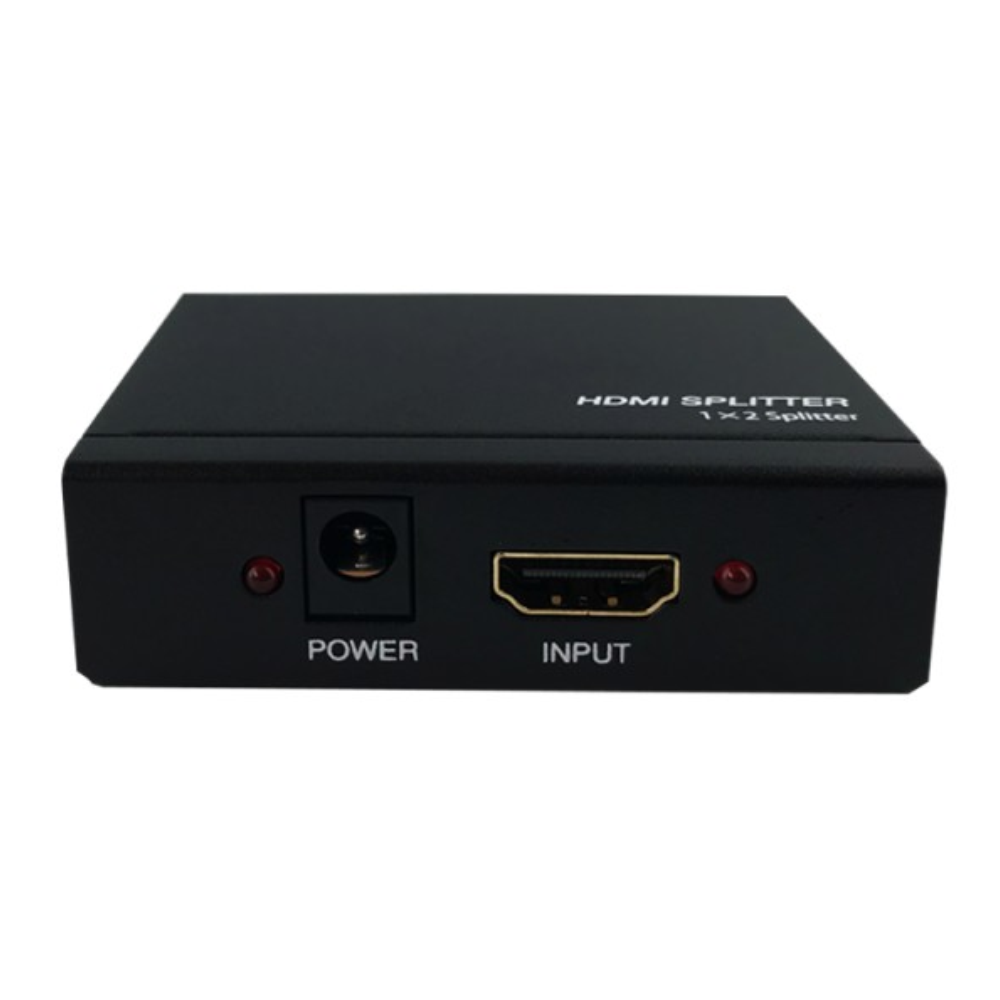

THDSP12X2-4K HDMI Splitter

Model No.:

THDSP12X2-4K

JAN:

4533239031683
<span>THDSP12X2-4K HDMI Splitter</span>
<span>THDSP12X2-4K HDMI Splitter</span> thumbnail 1 <span>THDSP12X2-4K HDMI Splitter</span> thumbnail 2 <span>THDSP12X2-4K HDMI Splitter</span> thumbnail 3 <span>THDSP12X2-4K HDMI Splitter</span> thumbnail 4 <span>THDSP12X2-4K HDMI Splitter</span> thumbnail 5 <span>THDSP12X2-4K HDMI Splitter</span> thumbnail 6

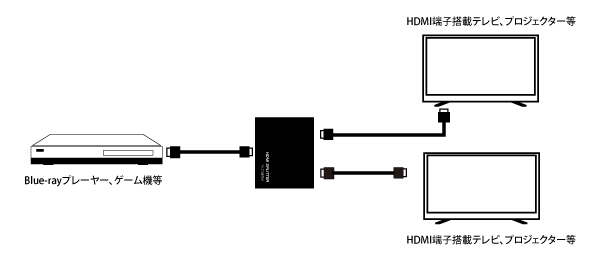

It is possible to output one HDMI input simultaneously to two HDMI displays (HDTV with HDMI input, or projector etc). It supports display resolutions up to 4K × 2K @ 30Hz, 1080P @ 120Hz, 1080P 3D @ 60Hz, and also 3D HDMI 1.4a video format, based on HDCP1.4 protocol. It supports audio formats such as non-compression audio, DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, and DSD. It can output HDMI simultaneously to two displays from one DVD player or game console. It also supports 3D image distribution and display.

THDSP12X2-4K HDMI Splitter 1 input 2 output 4K 3D support



Model no.THDSP12X2-4K
JAN4533239031683
Frequency band2.97 Gbps
HDMI versionHDMI 1.4a, HDCP 1.4
Input terminalHDMI × 1
Output terminalHDMI × 2
Supported resolutions4K × 2K @ 30Hz, 1080P @ 120Hz, 1080P 3D @ 60Hz
Supported audio formatDTS-HD / Dolby TrueHD / LPCM 7.1 / DTS / Dolby AC-3 / DSD
Length of supported cableUp to 10 m per port (depending on cable quality)
Operating temperature0 °C to 40 °C
Storage humidity20–90% RH (no condensation)
Power supplyAC adapter 5V 1A
Product size (mm)W60 × D70 × H20 (excluding protrusions)
Weight (g)Approx. 125 g
AccessoriesAC adapter, Japanese manual, warranty
※ Doesn't support HDMICEC.
