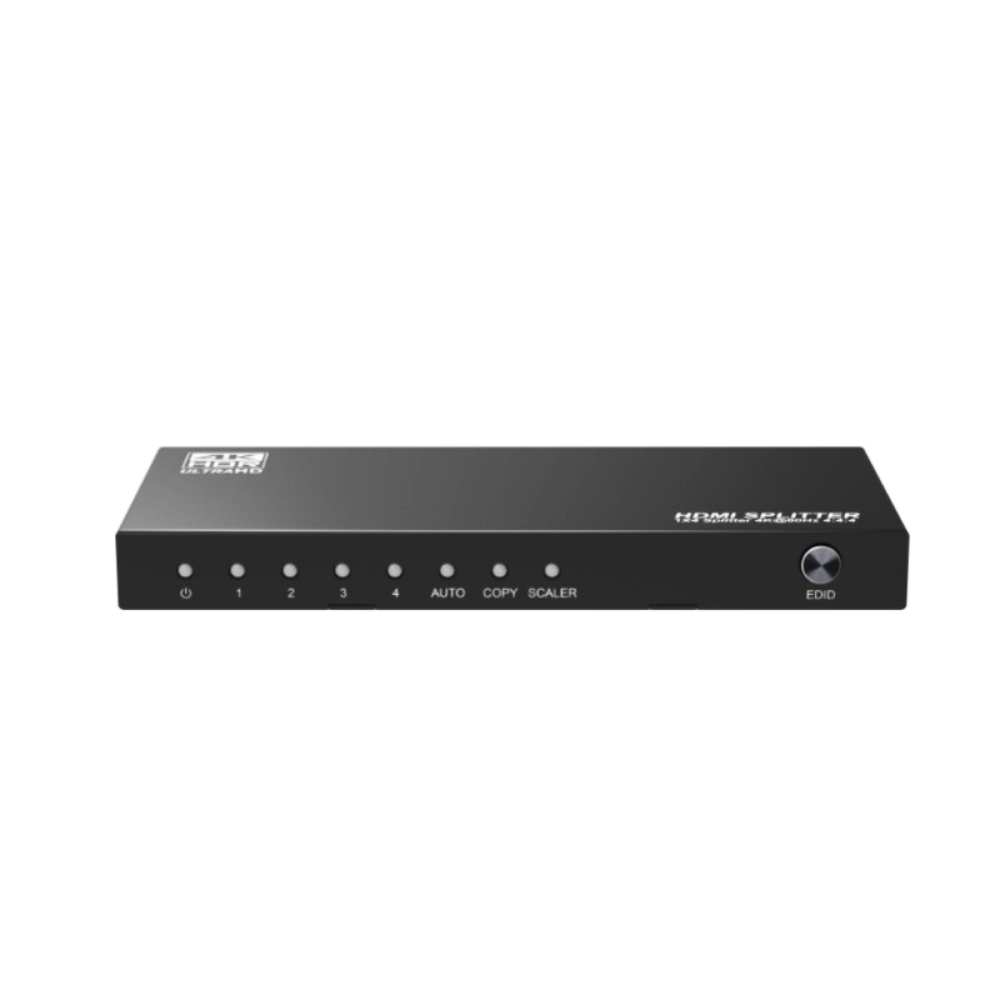

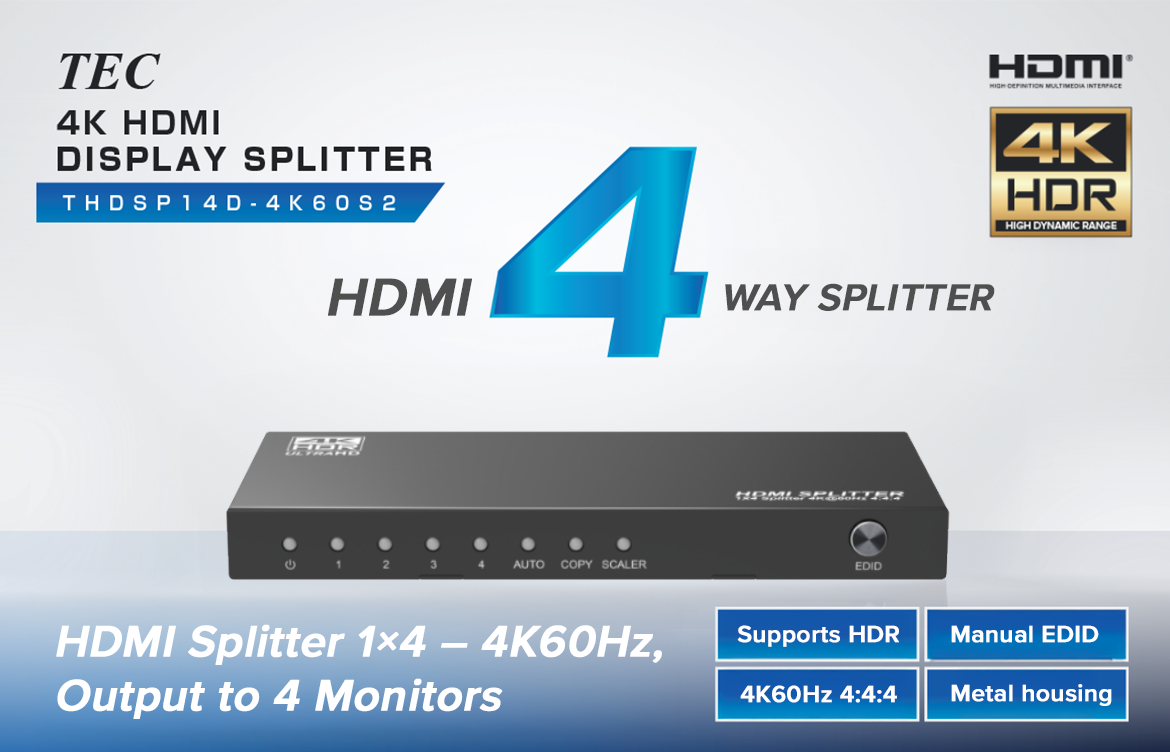

THDSP14D-4K60S2 HDMI Splitter Supports 4K 60Hz simultaneous output to 4 monitors
Model No.:
THDSP14D-4K60S2
JAN:
4533239033847
| Model number | THDSP14D-4K60S2 |
| JAN | 4533239033847 |
| HDMI specifications | HDMI 2.0 |

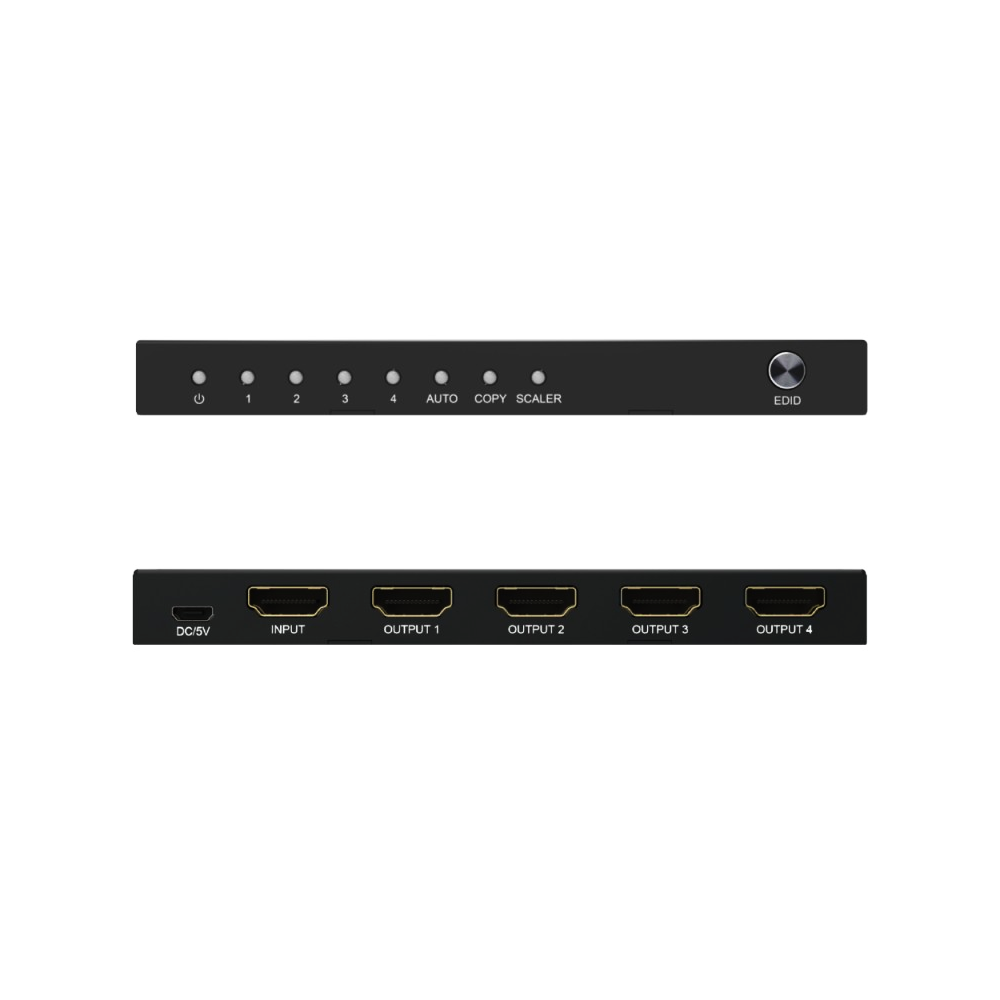

| Input Port | HDMI x1 |

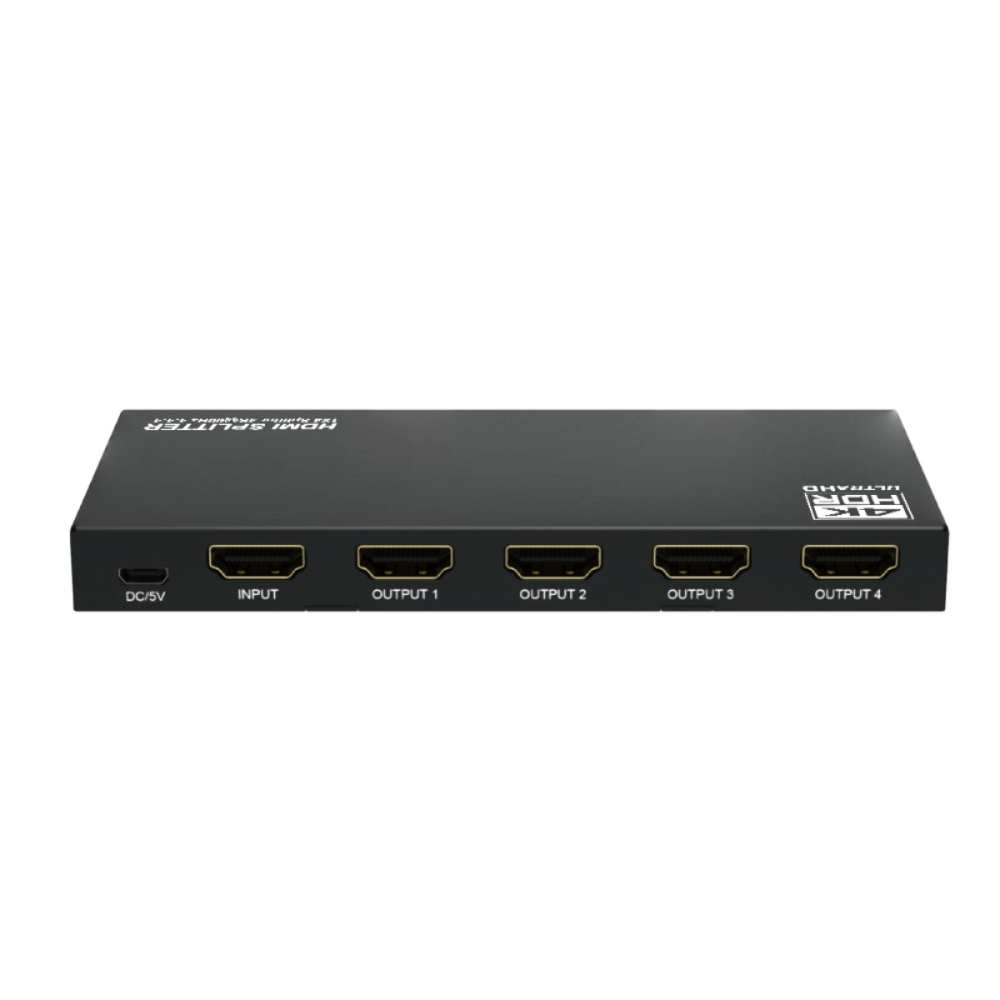

| Output Port | HDMI x 4 (cascading not recommended) |
| HDCP standard | HDCP 2.2 / HDCP 1.4 |
| Supported HDMI cable length | Less than 10m |
| Supported signal frequencies | 50/60Hz |
| Video signal transmission speed | 18Gbps in total |
| Supported interlace (50 & 60Hz) | 480i、576i、1080i |
| Supported progressive (50/60Hz) | 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz |
| power supply | 5V DC |
| Operating Power | 5W |

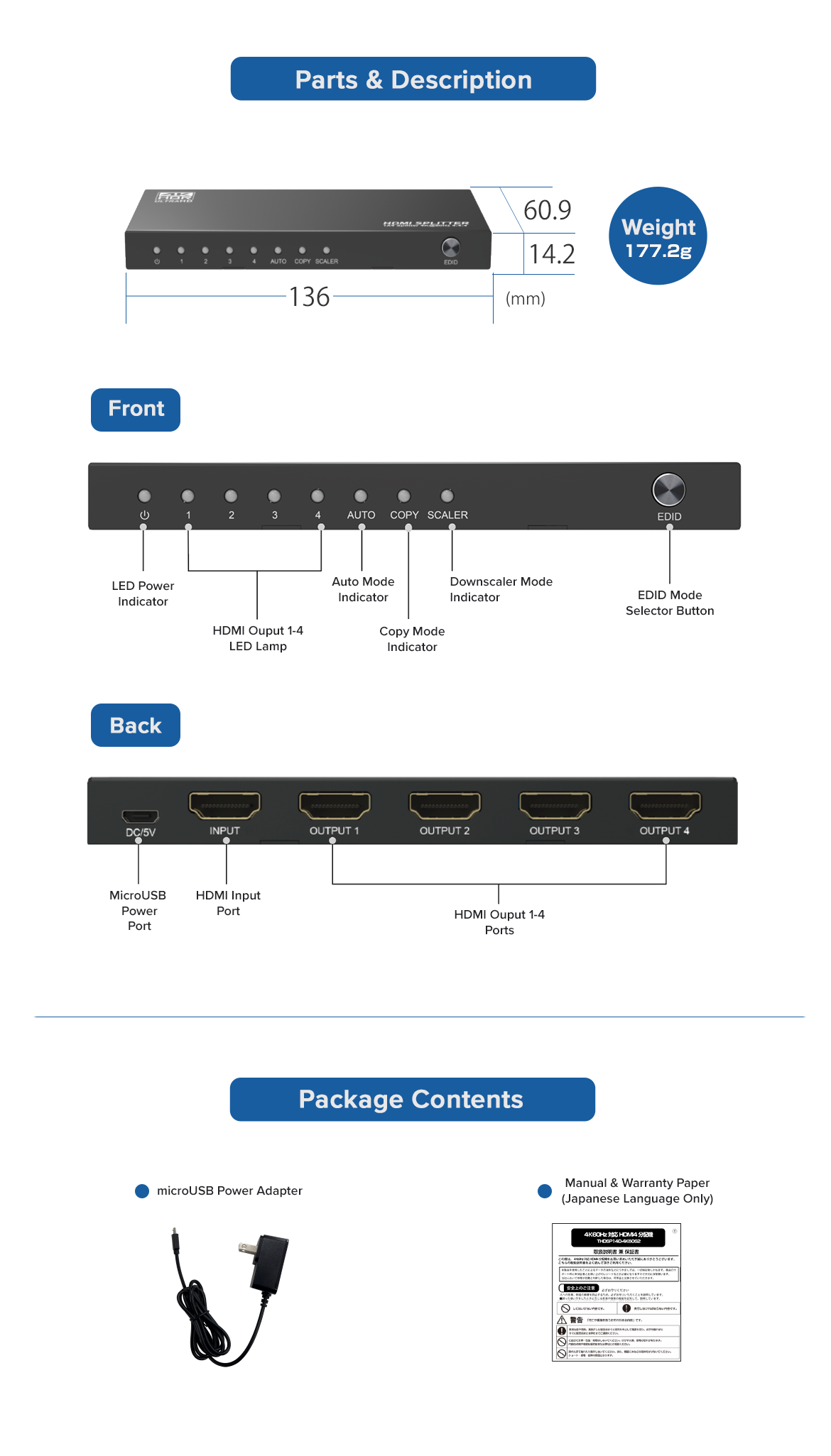

| Product size (L x W x H) | 136x60.9x14.2mm |
| gross weight | 177.2g |
* HDMI cable sold separately.
* To display 4K60Hz HDR, compatible devices, monitors, and HDMI cables are required.

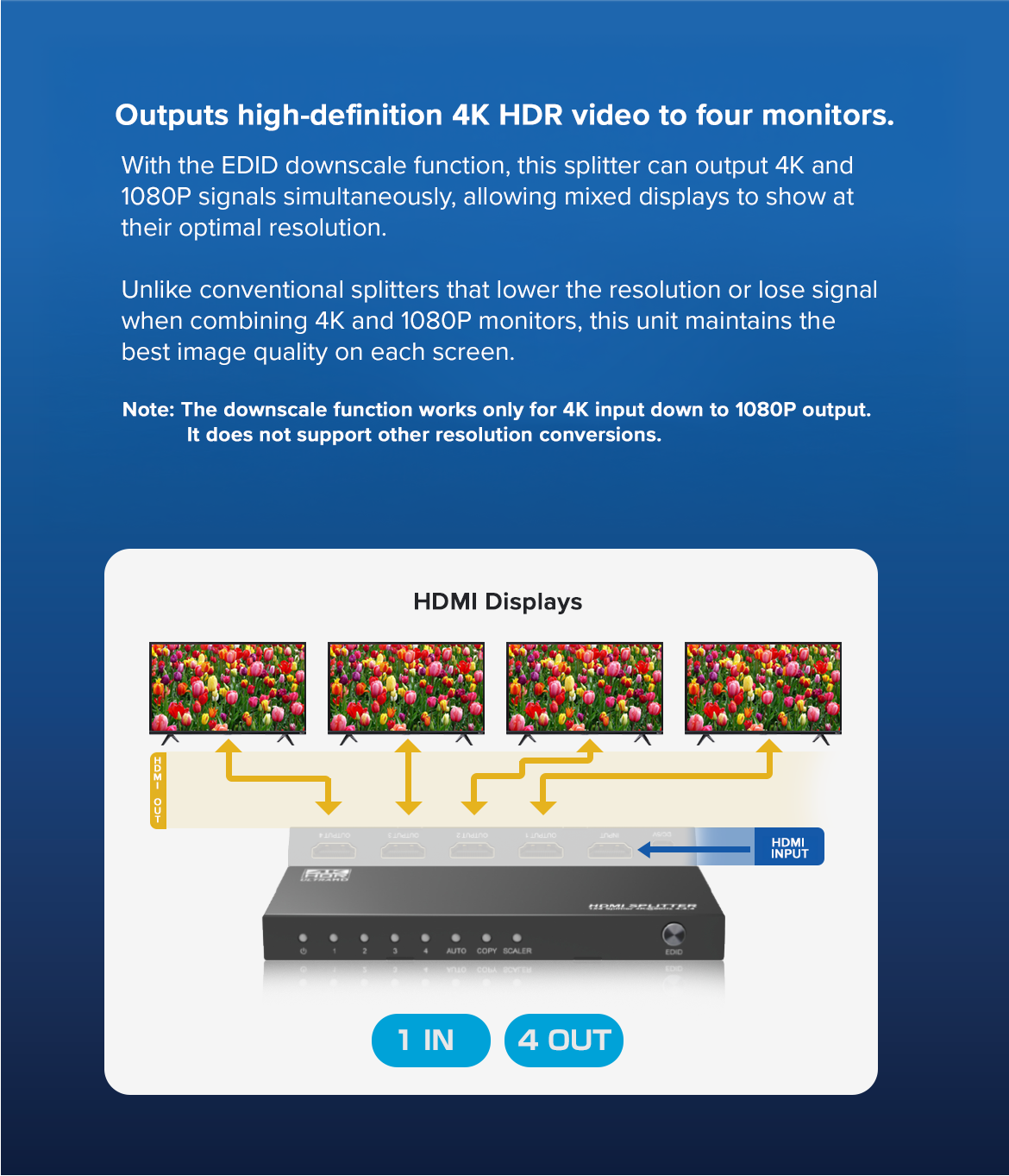

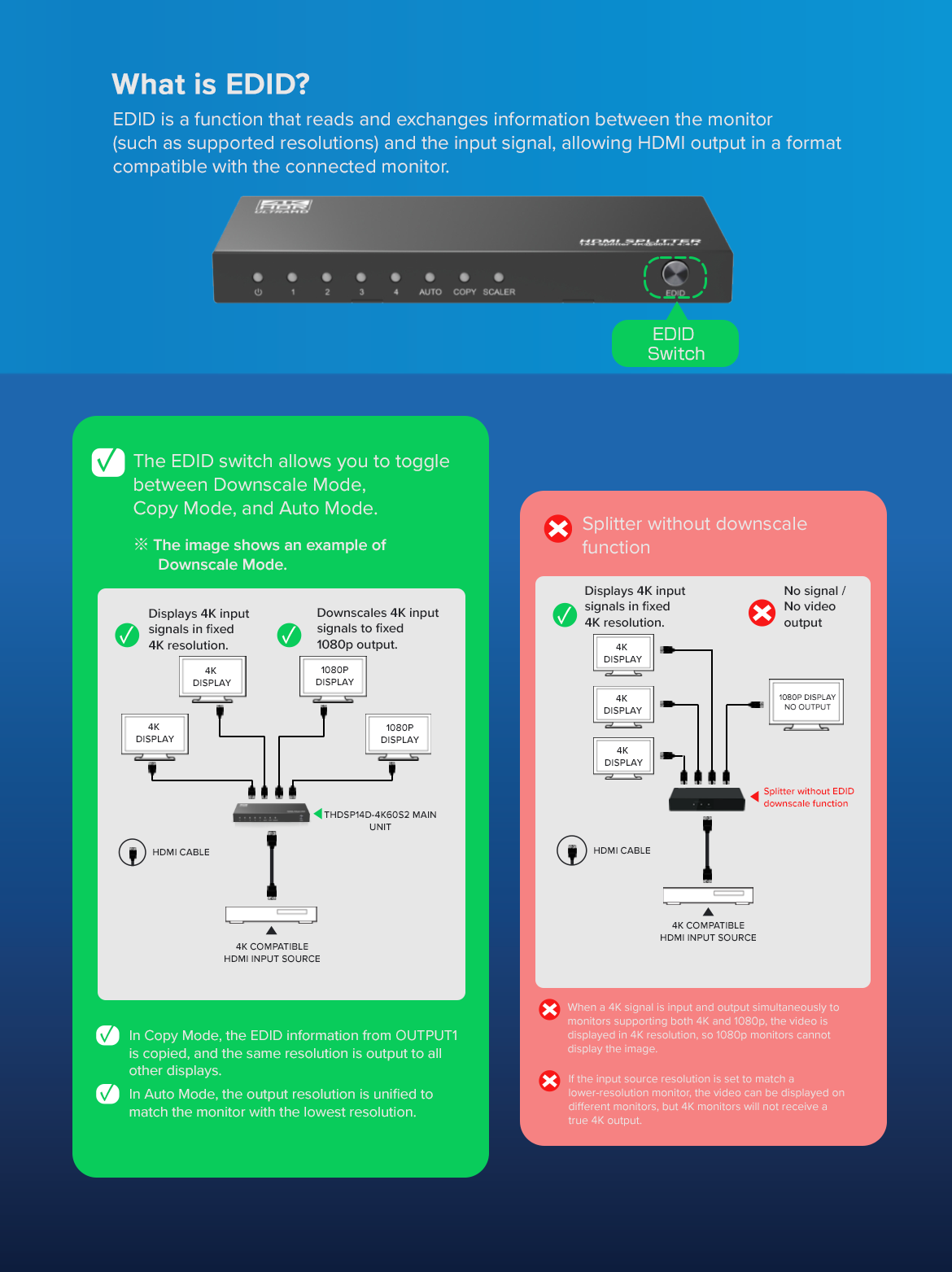

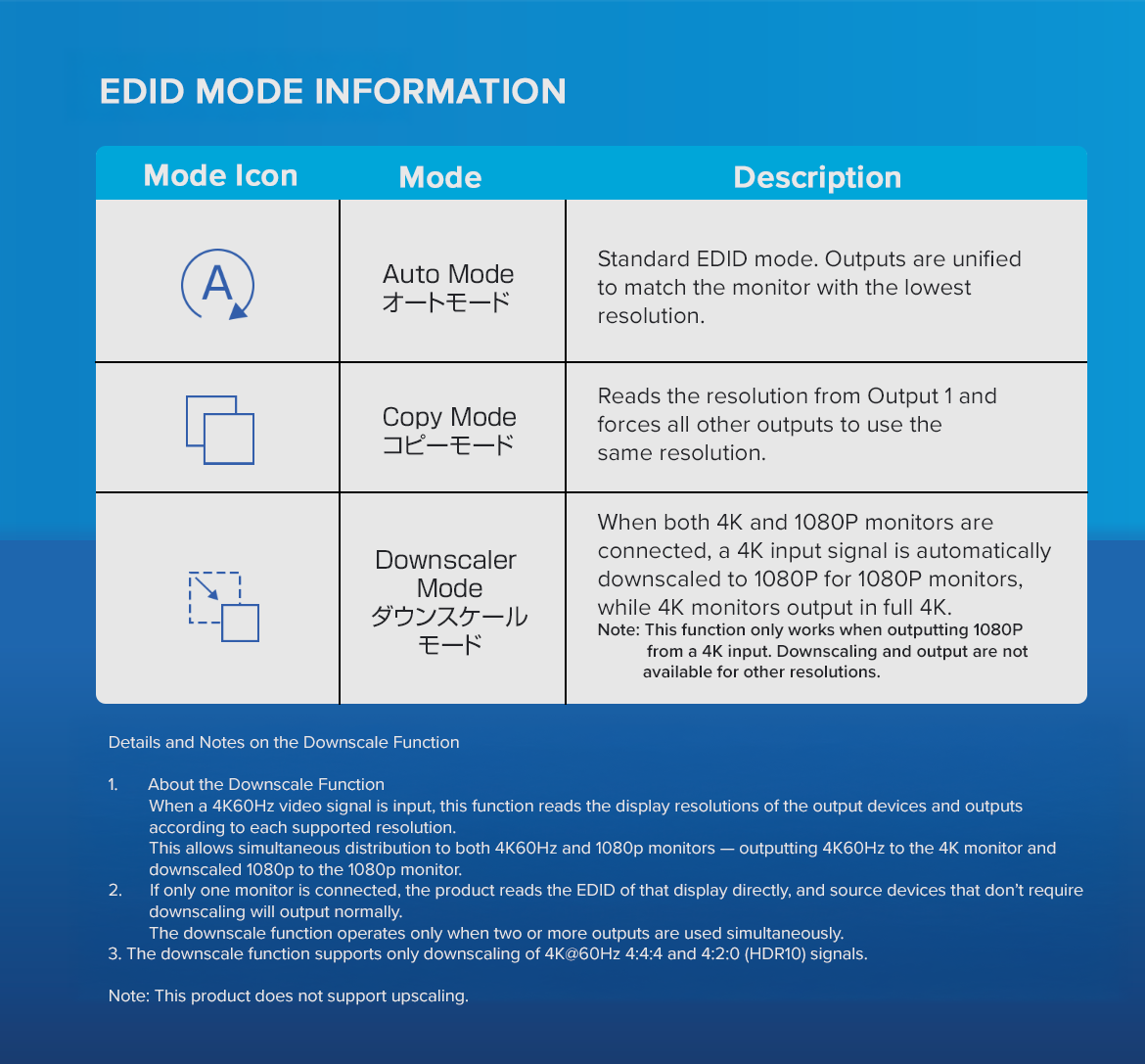

* This product supports downscaling but does not support upscaling.
* The downscale function only converts 4K signals to 1080p output.
* Cascade connection is not supported.
* This product does not guarantee compatibility with all devices.
* PC screen extension is not supported.
* Supports HDMI cables up to 10m for 1080p and up to 5m for 4K60p.
* CEC, HEC, and ARC are not supported.
