This product has been discontinued

Discontinued on: August 22, 2015

DISCONTINUED

Monitor01MINI USB Sound Converter

Model No.:

Monitor01MINI

JAN:

4533239022124
DISCONTINUED
<span>Monitor01MINI USB Sound Converter</span>
<span>Monitor01MINI USB Sound Converter</span> thumbnail 1 <span>Monitor01MINI USB Sound Converter</span> thumbnail 2

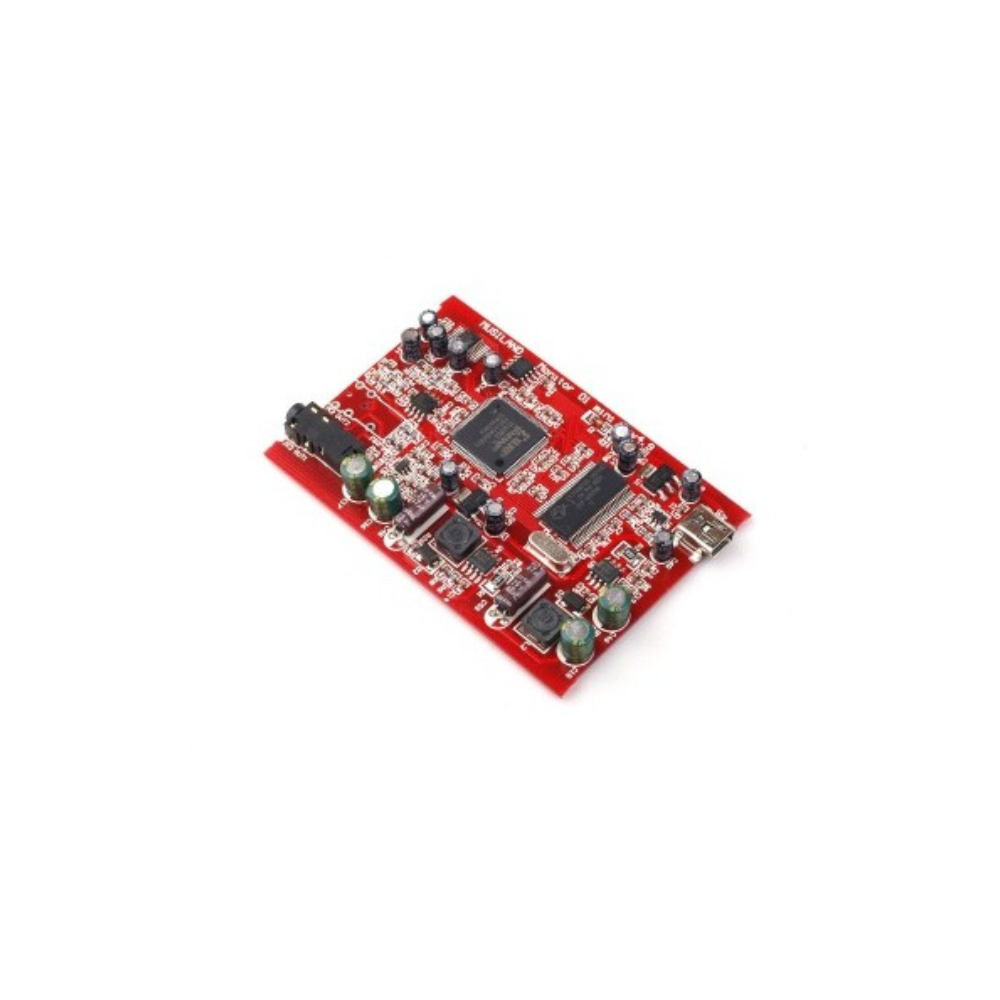

This USB sound converter supports data transfer up to 24bit/192kHz.

It also supports ASIO for high-resolution audio playback. Equipped with USB input, optical digital output, and a headphone jack, it functions as both a USB-DDC and USB-DAC.

Model no.Monitor01MINI
JAN4533239022124
Analog outputDynamic range (D/A): 106dB
S/N ratio (D/A): 106dB
Total harmonic distortion (D/A): 0.002%
Frequency response (20Hz–20KHz): +-0.1dB
Output level: 2V rms
Output impedance: 10KΩ
Headphone rated output: 80mW+80mW/LR=100Ω
Housing materialAluminum
Dimensions87 x61 x13（mm）
Weight80g
Interface3.5mm stereo output
Optical digital output (round type)
miniUSB input
Supported OSWindows XP / Vista / 7
Mac OS not supported
Package contentsMain unit, USB cable, driver CD, Chinese manual
NotesThe optical digital output and headphone jack are shared.
You need to manually switch between line output and headphone output from the control panel.
