This product has been discontinued

Discontinued on: August 22, 2015

DISCONTINUED

Monitor01US USB Sound Converter

Model No.:

Monitor01US

JAN:

4533239022117
DISCONTINUED
<span>Monitor01US USB Sound Converter</span>
<span>Monitor01US USB Sound Converter</span> thumbnail 1 <span>Monitor01US USB Sound Converter</span> thumbnail 2 <span>Monitor01US USB Sound Converter</span> thumbnail 3

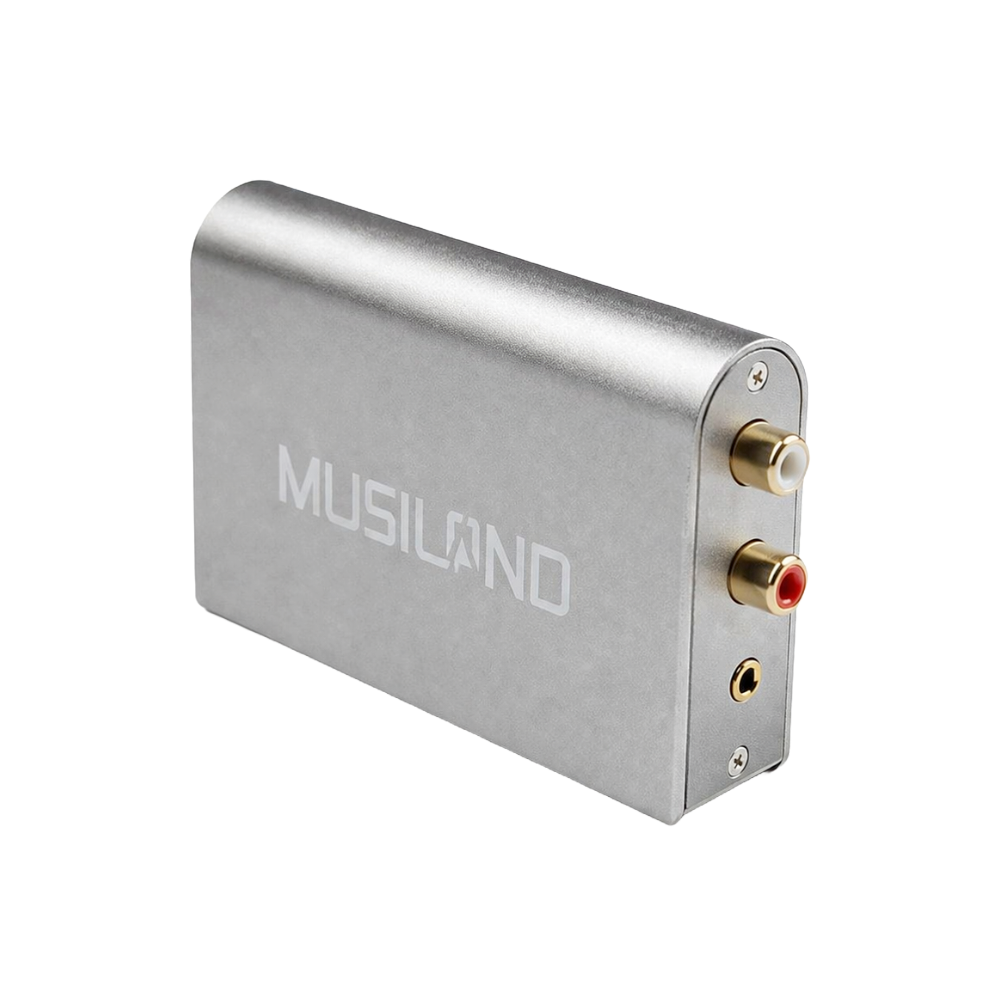

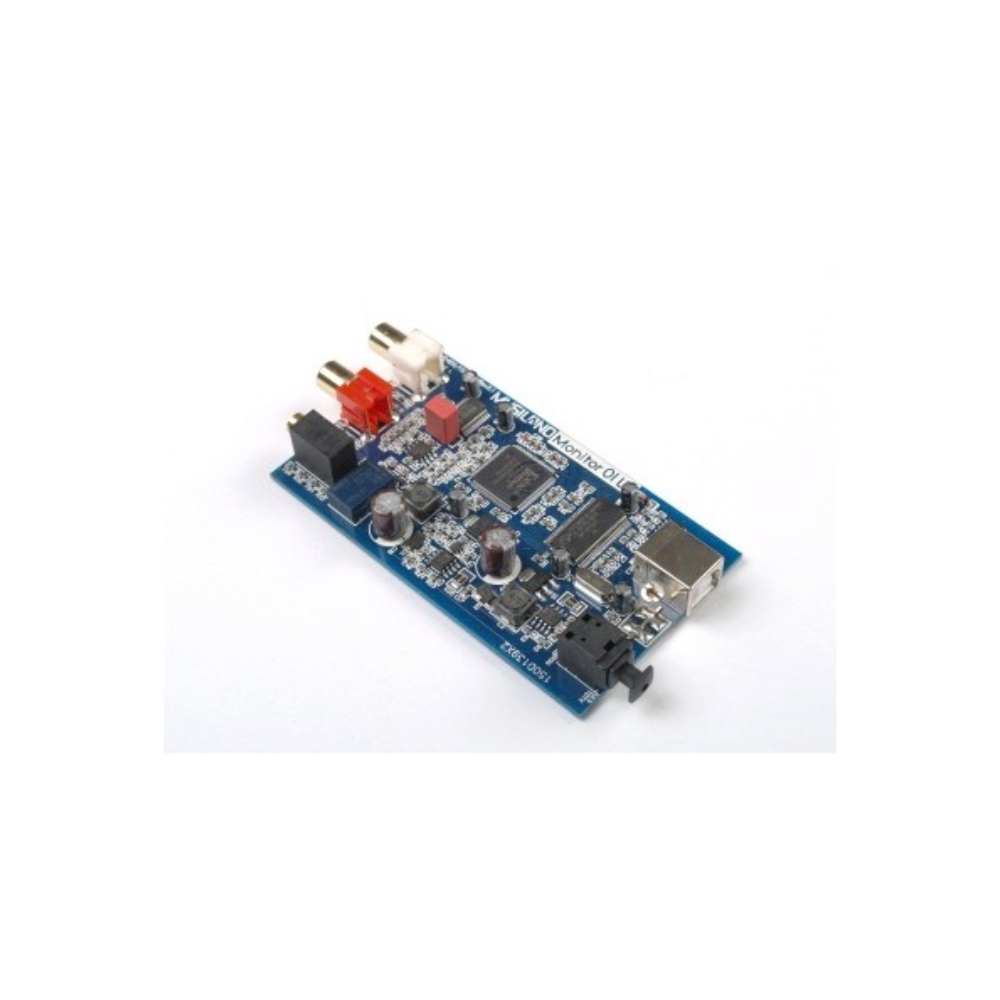

This USB sound converter supports data transfer up to 24bit/192kHz.

It also supports ASIO for high-resolution audio playback. Equipped with USB input, optical digital output, RCA output, and a headphone jack, it functions as both a USB-DDC and USB-DAC.

Model no.Monitor01US
JAN4533239022117
Analog outputDynamic range (D/A): 113dB
S/N ratio (D/A): 113dB
Total harmonic distortion (D/A): 0.005%
Frequency response (20Hz～20KHz): +-0.1dB
Output level: 2V rms
Output impedance: 10KΩ
Headphone rated output: 50mW+50mW/LR=100Ω
Digital outputDynamic range: 140dB
S/N ratio (A weighting): 140dB
Frequency response (20Hz～20KHz): +-0dB
Housing materialAluminum
Dimensions103 x67 x24（mm）
Weight145g
InterfaceAnalog RCA output
3.5mm stereo output
Optical digital output (square type)
B-TYPE USB input
Digital output formatPCM/Dolby Digital/DTS
ASIO supportSupported
Supported OSWindows XP / Vista / 7
Mac OS not supported
Package contentsMain unit, USB cable, driver CD, Chinese manual
NotesYou need to manually switch between line output and headphone output from the control panel.
