DISCONTINUED
TH-US4 USB Capture Unit
Model No.:
TH-US4
JAN:
4533239022209
DISCONTINUED
This USB capture unit allows you to easily import video from various sources to your PC.

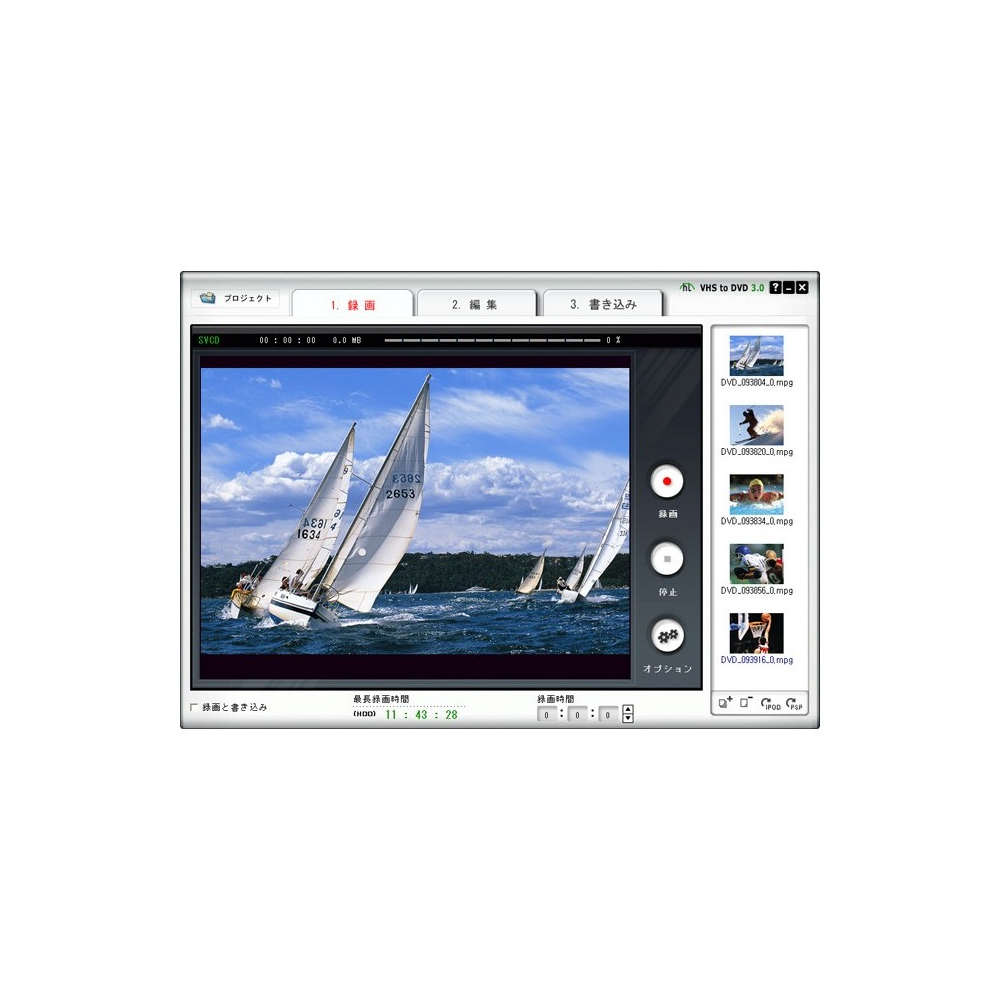

With the included software “VHS to DVD3.0SE,” it supports everything from capture and editing to disc burning. You can also easily convert video into formats compatible with iPod and PSP.
It also features a “Direct Recording” function that allows you to burn to DVD while capturing video.
| Model no. | TH-US4 |
| JAN | 4533239022209 |
| Interface | USB2.0 |
| Input terminals | Composite video input (RCA) ｘ1 S-video input ｘ1 Audio RCA input |
| Recording format | MPEG1/MPEG2/WMV |
| Supported resolution | 720x480 pixels (maximum) |
| Frame rate | Approx. 30fps (maximum) |
| Power supply | 5V USB2.0 bus power |
| Supported OS | WindowsXP(SP2) or later, Windows Vista, Windows7(32bit&64bit) |
| Included software | VHS to DVD3.0SE |
| Accessories | Driver/software CD/USB extension cable/composite cable/instruction manual with warranty card |
| Warranty period | 6 months |
| Recommended operating environment | CPU: Pentium4 2.0GHz or higher Memory: 256MB or more Video: VRAM 16MB or more, resolution 1024x768 or higher HDD: 1GB or more free space Other: One or more available ports supporting USB2.0 OS: Windows XP（SP2 or later） / Vista / 7(32&64bit) Drive compatible with writing to recordable CD/DVD media |
